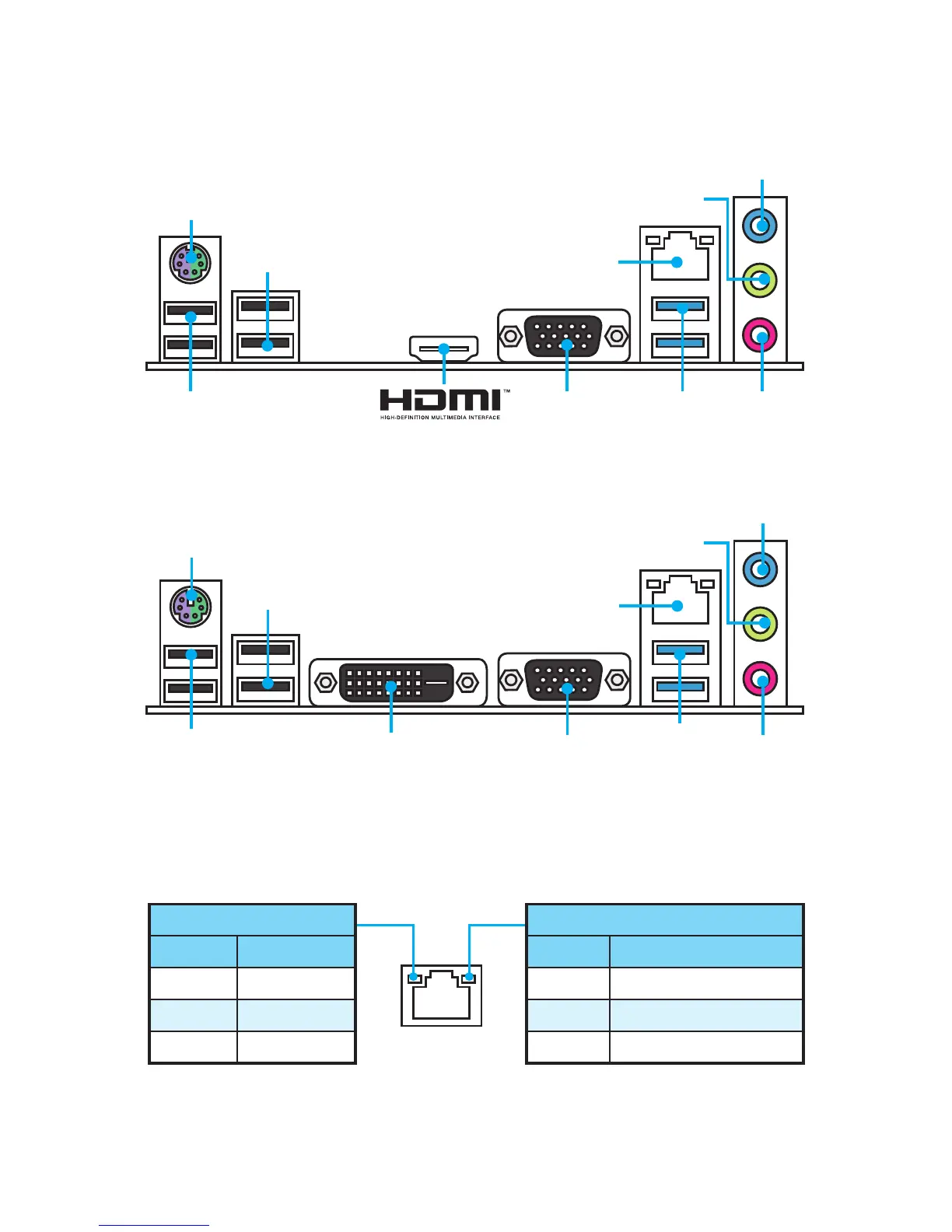

MSI H110M PRO-VD - Rear I;O Panel; H110 M PRO-VH Rear Panel Layout; H110 M PRO-VD;H110 M PRO-D Rear Panel Layout; LAN Port LED Status Table

6


PS/2
LAN
USB 2.0
USB 3.1 Gen1
DVI-D
VGA
(H110M PRO-VD)
USB 2.0

Line-in
Line-out
Mic in
PS/2
LAN
USB 2.0
USB 3.1 Gen1
VGAUSB 2.0

Line-in
Line-out
Mic in
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection

