MSI H310M PRO-M2 User Manual

13
󶳧󱝾󴘭󸵅 󶳧󱝾󴘭󸵅

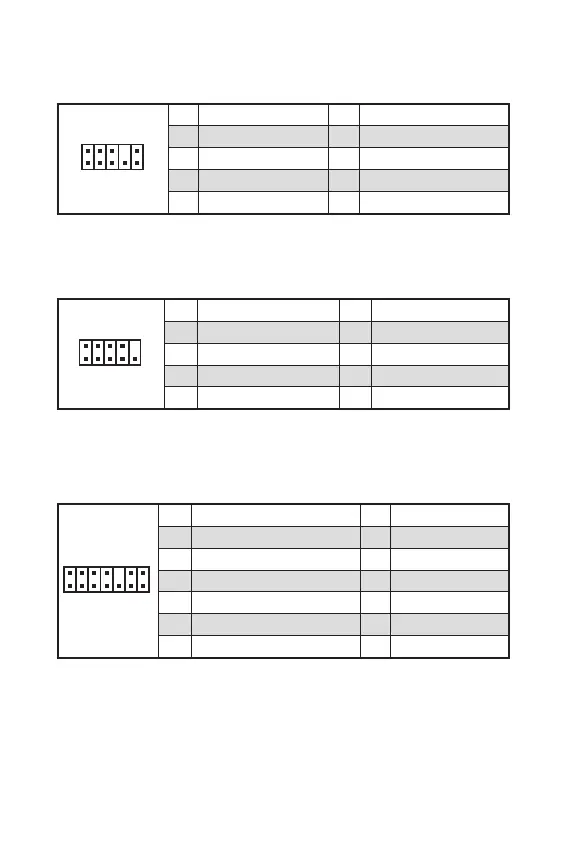

JAUD1: 󱴚󶷉󹮪󹲙󳰛󱿂
󴦞󳰛󱿂󱭩󸚞󳜂󸴗󳰛󱴚󶷉󹪸󴋃󱘔󹮪󹲙󳱥󲵑
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
JCOM1: 󱙏󸀅󶔏󲢃󳰛󱿂
󴦝󳰚󱿂󱭩󸚞󳜁󸴗󳰚󱿔󸶆󱙏󸀅󶔏󱿂󱿔󵫞󳱤󴜖
1
2 10
9
1 DCD 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No Pin
JTPM1: TPM 󴝙󶳧󳰛󱿂
󴦞󳰛󱿂󴂞󵫞󴊜󸴗󳰛 TPM (󲶿󾇄󳌣󱿖󴝙󶳧)󴝙󶳧󸛝󱾍󶻭 TPM 󲶿󾇄󳌣󱿖󳧼󱯤󱝤󷛇󳕅󴇠󲡖󶳩
󷐽󲃅󵫞󴰢
1
2 14
13
1 LPC Clock 2 3V Standby power
3 LPC Reset 4 3.3V Power
5 LPC address & data pin0 6 Serial IRQ
7 LPC address & data pin1 8 5V Power
9 LPC address & data pin2 10 No Pin
11 LPC address & data pin3 12 Ground
13 LPC Frame 14 Ground

MSI H310M PRO-M2 Specifications

General

Form Factor	Micro-ATX
Chipset	Intel H310
CPU Socket	LGA 1151
Memory Slots	2
Memory Type	DDR4
Maximum Memory	32 GB
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
USB Ports	4 x USB 3.1 Gen 1, 6 x USB 2.0
Audio	Realtek ALC887
LAN	Realtek 8111H Gigabit LAN
Storage Interface	4 x SATA 6Gb/s
Memory Speed	2666/ 2400/ 2133 MHz
Video Outputs	1 x VGA
