MSI H510I PRO WIFI User Manual

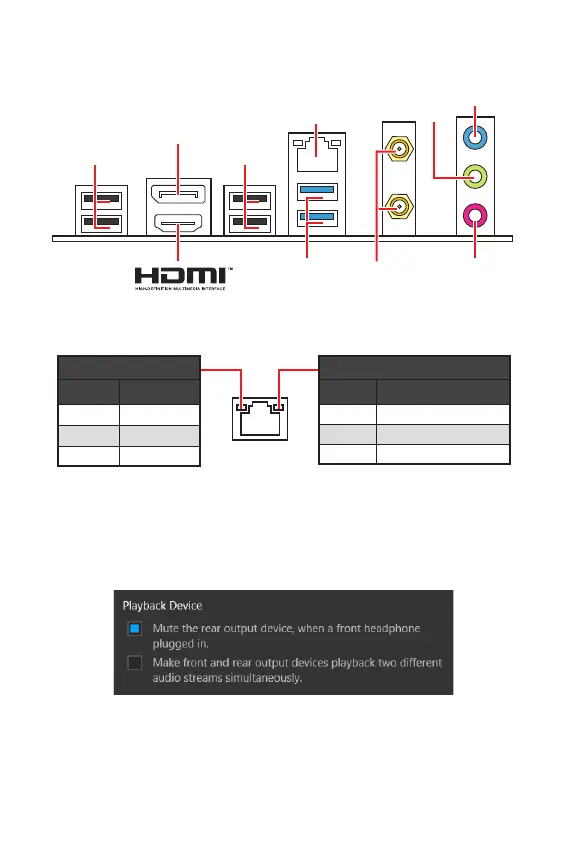

7
 


Status 
Off No link
Yellow Linked
Blinking Data activity

Status 
Off 10 Mbps connection
Green 100/ 1000 Mbps connection
Orange 2.5 Gbps connection

2.5 Gbps LAN
DisplayPort
USB 2.0 Type-A USB 2.0 Type-A
Line In
Line Out
Mic In USB 3.2 Gen1
(5Gbps) Type-A
Wi-Fi Antenna
connectors

To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
 Click on the  to open the dialog
below.
 Select .
 Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device
is current connected.

MSI H510I PRO WIFI Specifications

General

Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel H510
Audio output channels	8 channels
Motherboard form factor	mini ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64
DirectX version	12.0
Parallel processing technology support	-
DisplayPort version	1.4
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
TPM connector	Yes
LAN controller	Realtek RTL8125B
Bluetooth version	5.1
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet interface type	2.5 Gigabit Ethernet
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz
Supported memory clock speed (max)	3200 MHz
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Celeron, Intel Core i9, Intel Pentium Gold
