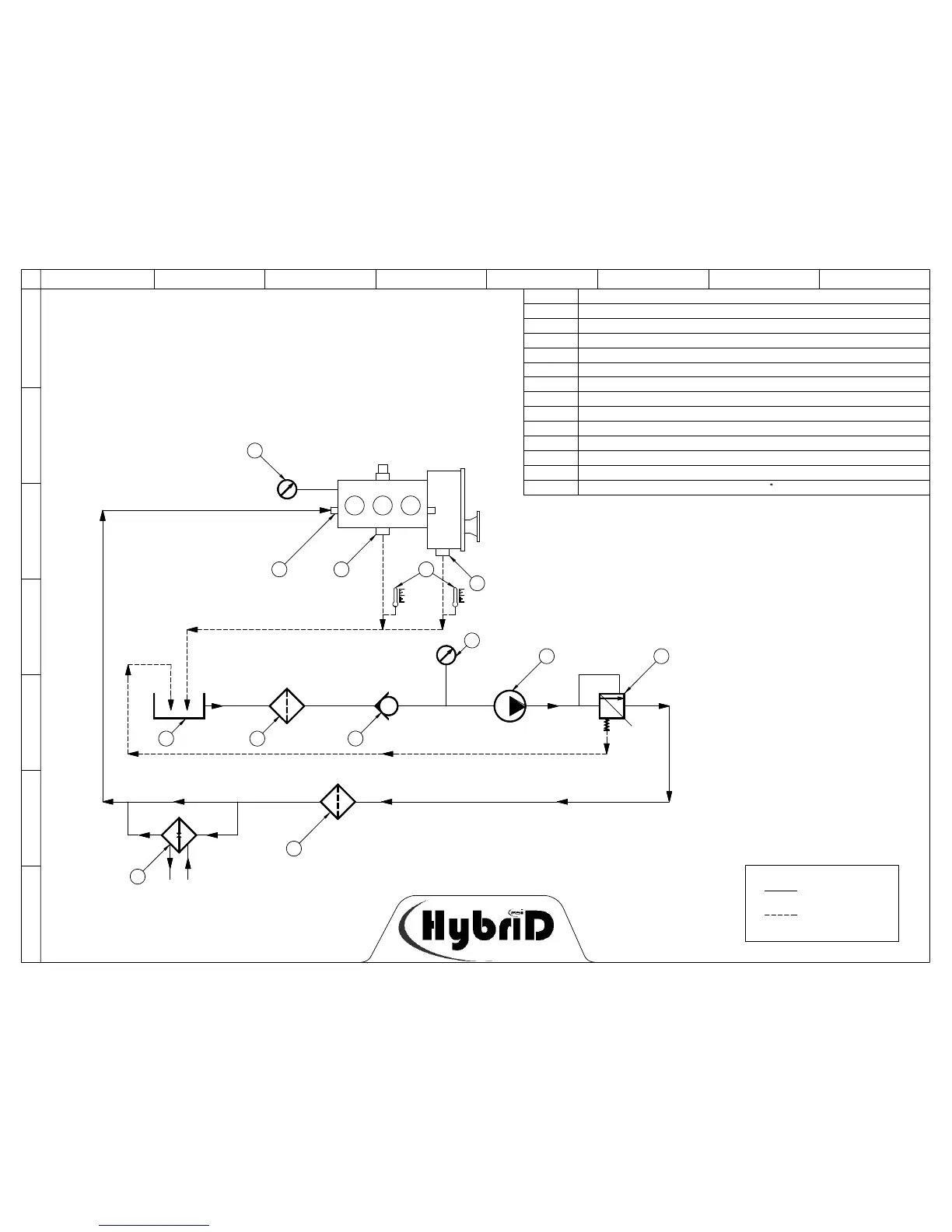

ITEM NO. DESCRIPTION
1 RESERVOIR, VENTED 50 GALLON MIN CAPACITY
2 SUCTION STRAINER, 50 GPM MIN. 300 SQ IN MIN. 40-100 MESH w/3-5 PSI RELIEF
3 CHECK VALVE, SWING 1-12" ID MINIMUM
4 VACUUM GAUGE, LIQUID FILLED, 0-30" Hg
5 PUMP, GEAR TYPE, 20 GPM, 300 PSI MIN. ENGINE OR TRANSMISSION DRIVEN
6 RELIEF VALVE, ADJUSTABLE, 60-200 PSI, 3/4" ID 20-25 GPM MIN.
7 FILTER, 50 GPM/200 PSI MIN. 25-33 MICRON ELEMENTS, w/ 15-25 PSI RELIEF
8 HEAT EXCHANGER--SEE MANUAL FOR SIZING
9 PRESSURE GAUGE, LIQUID FILLED, 0-200 PSI
10 POWER END LUBE INLET, 1/2" NPTF
11 POWER END LUBE DRAIN, 3" NPTM
12 GEAR REDUCER DRAIN, 2" NPTF
13 TEMPERATURE TRANSDUCER/GUAGE, 0-250
F
D
C
A
12345678
G
F
E
B
L
U
B
R
IC
A
T
IO
N
S
Y
S
T
E
M
S
C
H
E
M
A
T
IC
12
1
2
3
4
5 6
7
8
9
10 11 13
OPTIONAL
SEE SECTION 5.3
SUPPLY FLOW
RETURN FLOW
