NOTE:
1) TO PREVENT DAMAGE TO DISCHARGE FLANGE SEAL, INSTALL IT INTO THE
FLUID CYLINDER SEAL BORE BEFORE INSTALLING THE DISCHARGE FLANGE.
2) USE ONLY GRADE "B7" STUDS PER ASTM A193 OR GRADE "L7" STUDS PER
ASTM A320.
3) USE ONLY GRADE "2H" NUTS PER ASTM A194.

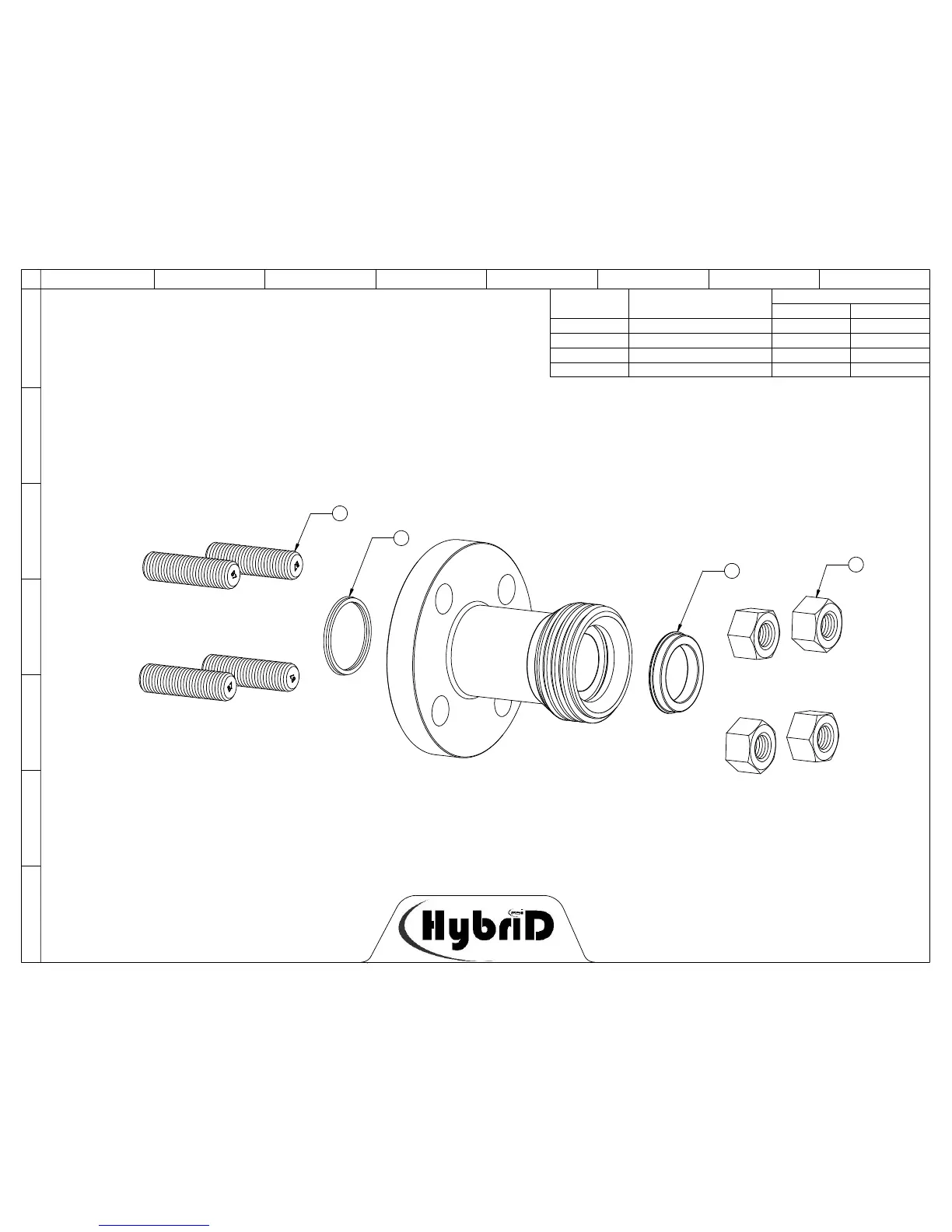

ITEM NO. DESCRIPTION
PART NUMBER
600|1300 BHP 1000 BHP
1 DISCHARGE FLANGE SEAL FEC0014 FEC0148
2 DISCHARGE FLANGE STUD HC0091 HC0174
3 DISCHARGE FLANGE NUT HC0092 HC0085
4 UNION RESILIENT SEAL UC0011 UC0013
DISCHARGE FLANGES CAN BE PROVIDED WITH MALE
OR FEMALE HAMMER UNIONS AND IN STRAIGHT OR
ELBOW CONFIGURATIONS.
2
1
4
UNION FEMALE
3
600 BHP: FEC0029
1000 BHP: FEC0146
1300 BHP: FEC0478
