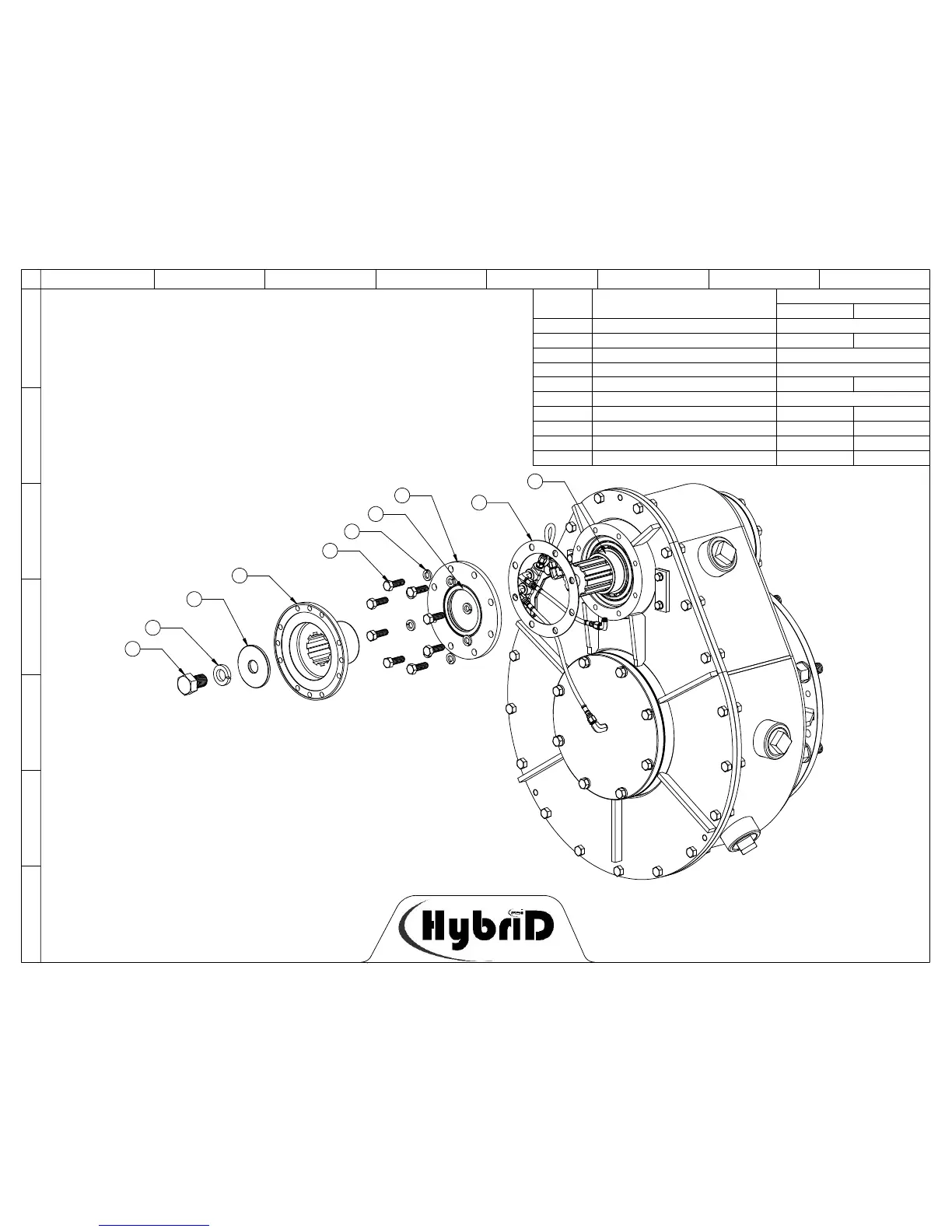

ITEM NO. DESCRIPTION
PART NUMBER
TRIPLEX QUINTUPLEX
1 FLANGE BOLT HC0103
2 *COMPANION FLANGE GRC0041 GRC0049
3 LOCK WASHER HC0101
4 LOCK WASHER HC0100
5 PINION CAP GRC0034 GRC0070
6 PINION CAP BOLT HC0096
7 PINION OIL SEAL GRC0027 GRC0073
8 PINION SPACER GRC0035 GRC0052
9 RETAINER WASHER GRC0042 GRC0048
10 SHIM SET GRC0032 GRC0055
D
C
A
12345678
G
F
E
B
G
E
A
R
R
E
D
U
C
E
R
S
H
IM
A
D
J
U
S
T
M
E
N
T
5
1
2
3
4
8
6
9
7
* THE STANDARD TRIPLEX PUMP COMPANION FLANGE UTILIZES A
SPICER SERIES 1810 CONNECTION, THE QUINTUPLEX PUMP UTILIZES
A SPICER SERIES 1950 CONNECTION.
INPUT FLANGE OPTIONS ARE AVAILABLE, CONTACT MSI SALES
10
