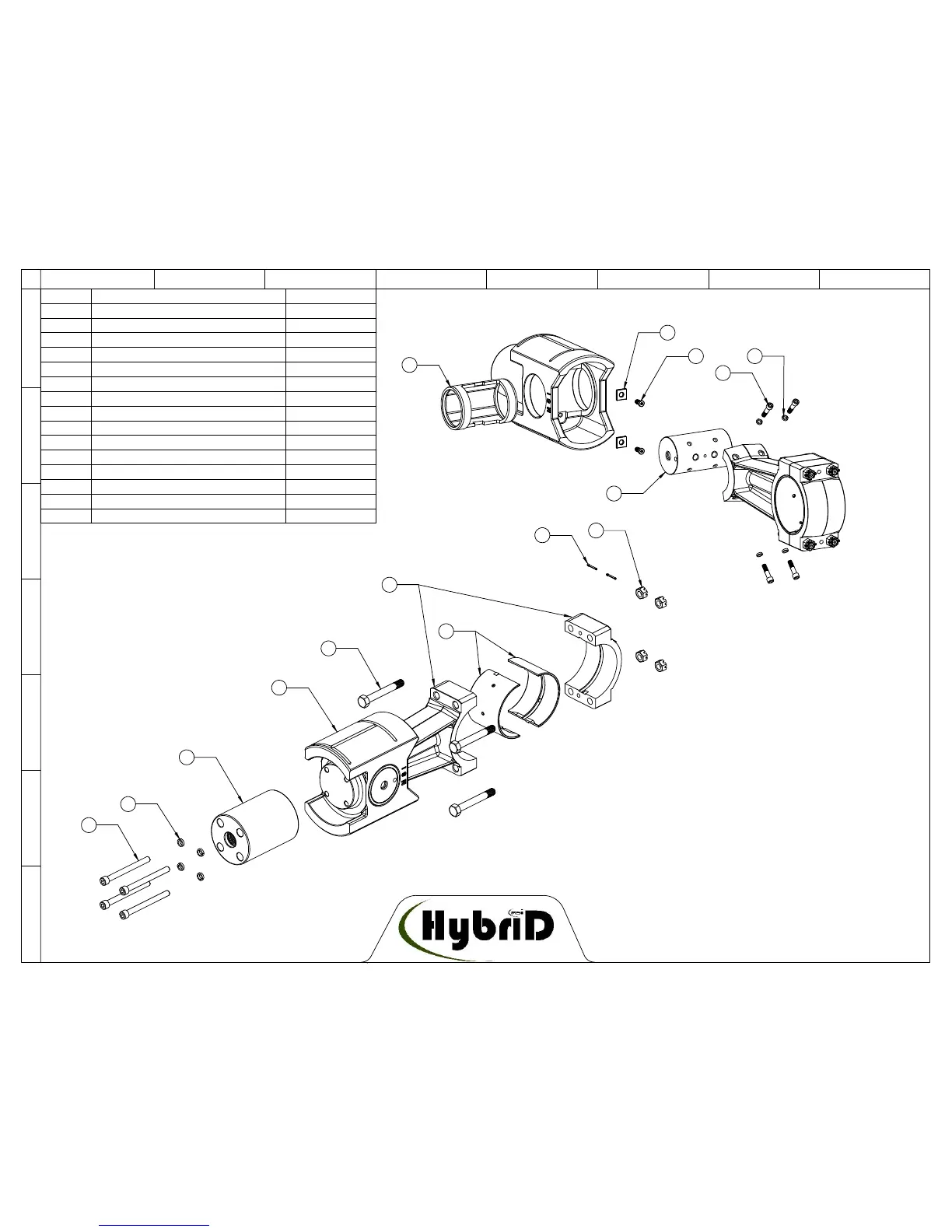

ITEM NO. DESCRIPTION PART NUMBER
1 CONNECTING ROD PEC0216
2 CONNECTING ROD BEARING PEC0044
3 CONNECTING ROD BOLT PEC0048
4 CONNECTING ROD NUT HC0086
5 COTTER PIN HC0088
6 CROSSHEAD PEC0217
7 CROSSHEAD BEARING PEC0219
8 CROSSHEAD BEARING RETAINER HC0504
9 CROSSHEAD BEARING RETAINER BOLT HC0503
10 CROSSHEAD PIN PEC0218
11 CROSSHEAD PIN BOLT HC0049
12 CROSSHEAD PIN WASHER HC0025
13 POWER END PLUNGER PEC0220
14 POWER END PLUNGER BOLT HC0467
15 POWER END PLUNGER WASHER HC0023
12
7
11
9
10
8
14
4
3
5
6
15
2
1
13
