1-4

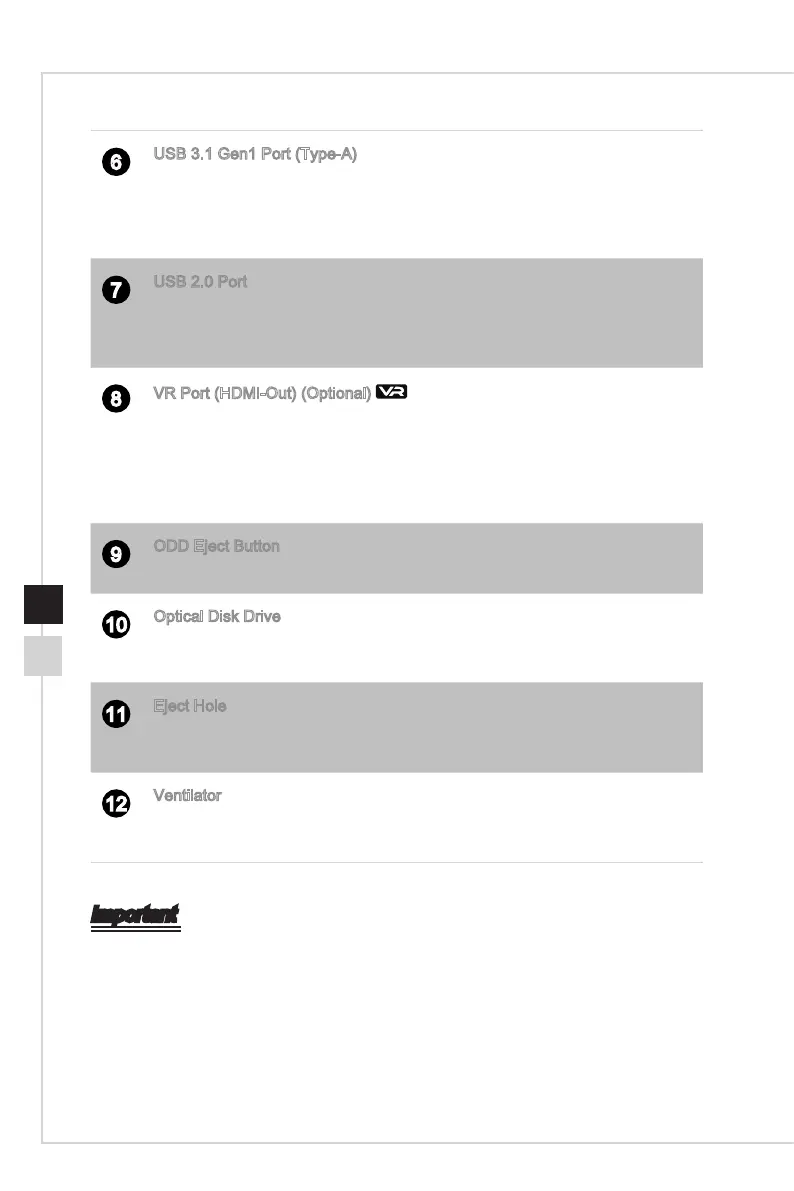

6
USB 3�1 Gen1 Port (Type-A)
The USB (Universal Serial Bus) port is for attaching USB devices such
as keyboard, mouse, or other USB-compatible devices� It supports up
to 5Gbit/s (SuperSpeed) data transfer rate� The USB 3�1 Gen1 port is
backward-compatible with USB 2�0 devices�
7
USB 2�0 Port
The USB (Universal Serial Bus) port is for attaching USB devices such
as keyboard, mouse, or other USB-compatible devices� It supports up to
480Mbit/s (Hi-Speed) data transfer rate�
8
VR Port (HDMI-Out) (Optional)
The High-Denition Multimedia Interface (HDMI) is an all-digital audio/ video
interface capable of transmitting uncompressed streams�
This port will be available for connecting a HDMI device, once the VR Link
Port on the rear panel is connected to the HDMI-out port on the graphics
card with a HDMI cable�
9
ODD Eject Button
Press the button to open the optical disk drive�
10
Optical Disk Drive
A DVD Super-Multi drive is integrated for your home entertainment (Blu-ray
is optional)�
11
Eject Hole
Insert a thin, straight object (such as a paper clip) into the eject hole to open
the optical disk drive manually if the eject button does not work�
12
Ventilator
The ventilator on the enclosure is used for air convection and to prevent the
equipment from overheating� Do not cover the ventilator�
Important
High-speed devices are recommended for USB 3�1 Gen1 ports whereas low-speed
devices, such as mouse or keyboard, are suggested to be plugged into the USB 2�0
ports�
