Overview
1-7
7

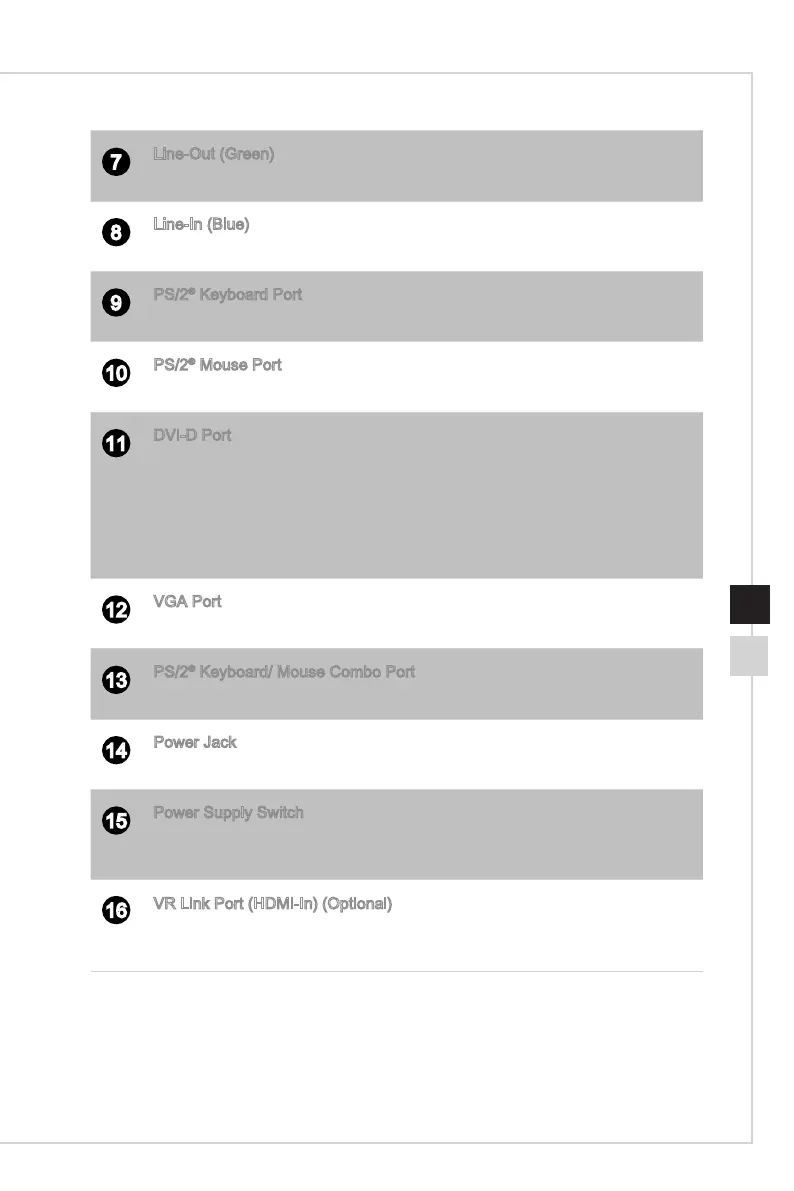

Line-Out (Green)
Used as a connector for speakers or headphones�
8
Line-In (Blue)
Used for connecting external audio outputting devices�
9
PS/2
®
Keyboard Port
The PS/2
®
keyboard DIN connector for PS/2
®
keyboard�
10
PS/2
®
Mouse Port
The PS/2
®
mouse DIN connector for PS/2
®
mouse�
11
DVI-D Port
The DVI-D (Digital Visual Interface-Digital) connector allows you to connect
a LCD monitor� It provides a high-speed digital interconnection between the
computer and its display device� To connect an LCD monitor, sim-ply plug
your monitor cable into the DVI-D connector, and make sure that the other
end of the cable is properly connected to your monitor (refer to your monitor
manual for more information�)
12
VGA Port
The DB15-pin female port is provided for monitor�
13
PS/2
®
Keyboard/ Mouse Combo Port
The PS/2
®
keyboard/ mouse DIN connector for PS/2
®
keyboard/ mouse�
14
Power Jack
Power supplied through this jack supplies power to your system�
15
Power Supply Switch
Switch this switch to - can turn on the power supply. Switch it to 0 to cut o
the power circulation�
16
VR Link Port (HDMI-In) (Optional)
The VR (Virtual Reality) link port is for attaching VR-compatible graphics
cards�
