A-4
MS-6738 Micro ATX Mainboard
1 Line Out (Front channels)
2 * Line Out (Rear channels)
3 MIC
* Line In function is converted to Line
Out function when 4-Channel Mode
for 4-Speaker Output is selected.

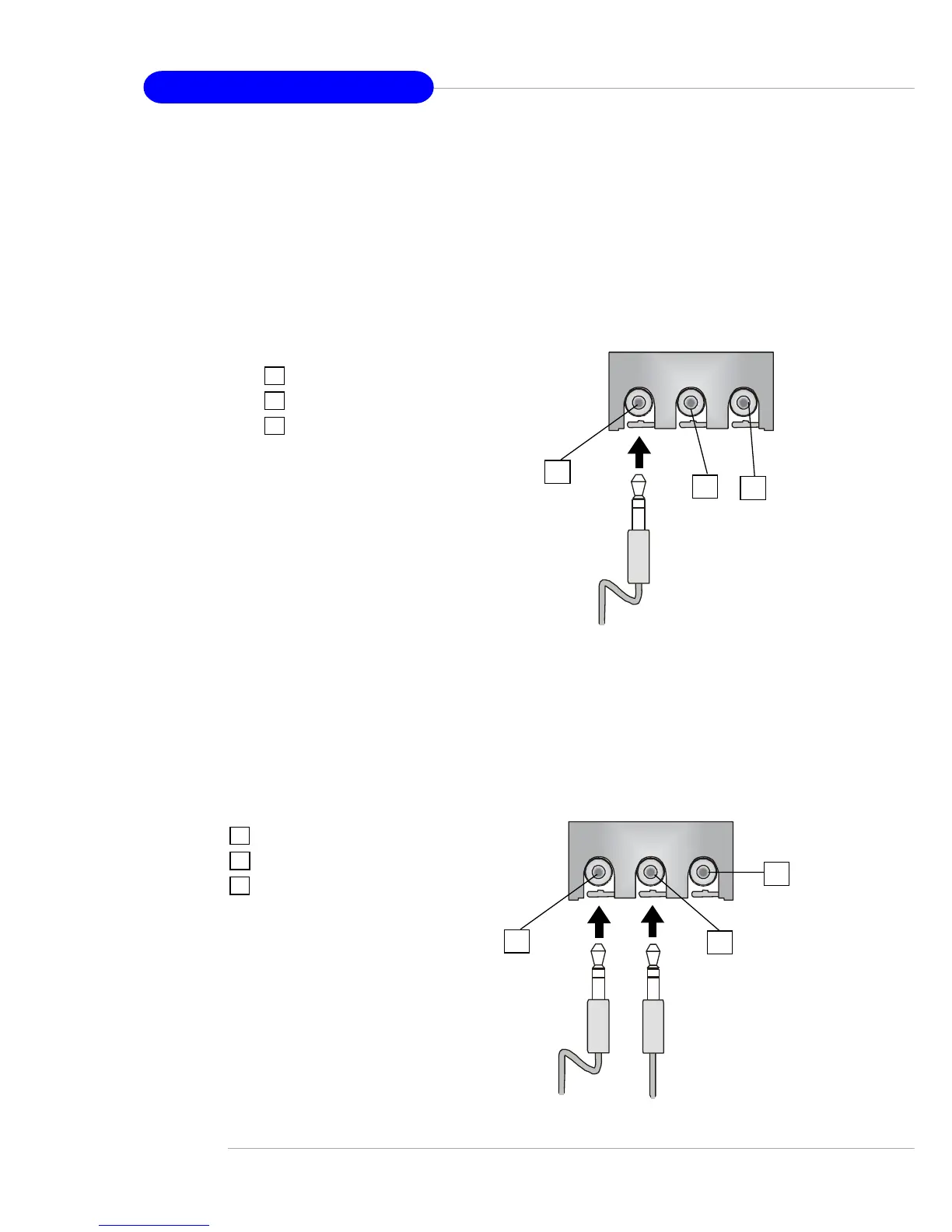

4-Channel Mode for 4-Speaker Output
The audio jacks on the back panel always provide 2-Channel analog
audio output function, however these audio jacks can be transformed
to 4- or 6- channels analog audio jacks by selecting the corresponding
multi-channel operation from No. of Speakers.
Refer to the following diagram and caption for the founction of each
jack on the back panel when 4-Channel Mode is selected.
1 Line Out (Front channels)
2 Line In
3 MIC
Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly
in the software utility, connect your speakers to the correct phonejacks
in accordance with the setting in software utility.
2-Channel Mode for Stereo-Speaker Output
Refer to the following diagram and caption for the function of each
phonejack on the back panel when 2-Channel Mode is selected.
2
3
1
2
3
1
