MSI MAG B460 TOMAHAWK - Rear I;O Panel; LAN Port LED Status Table; Audio Ports Configuration

21

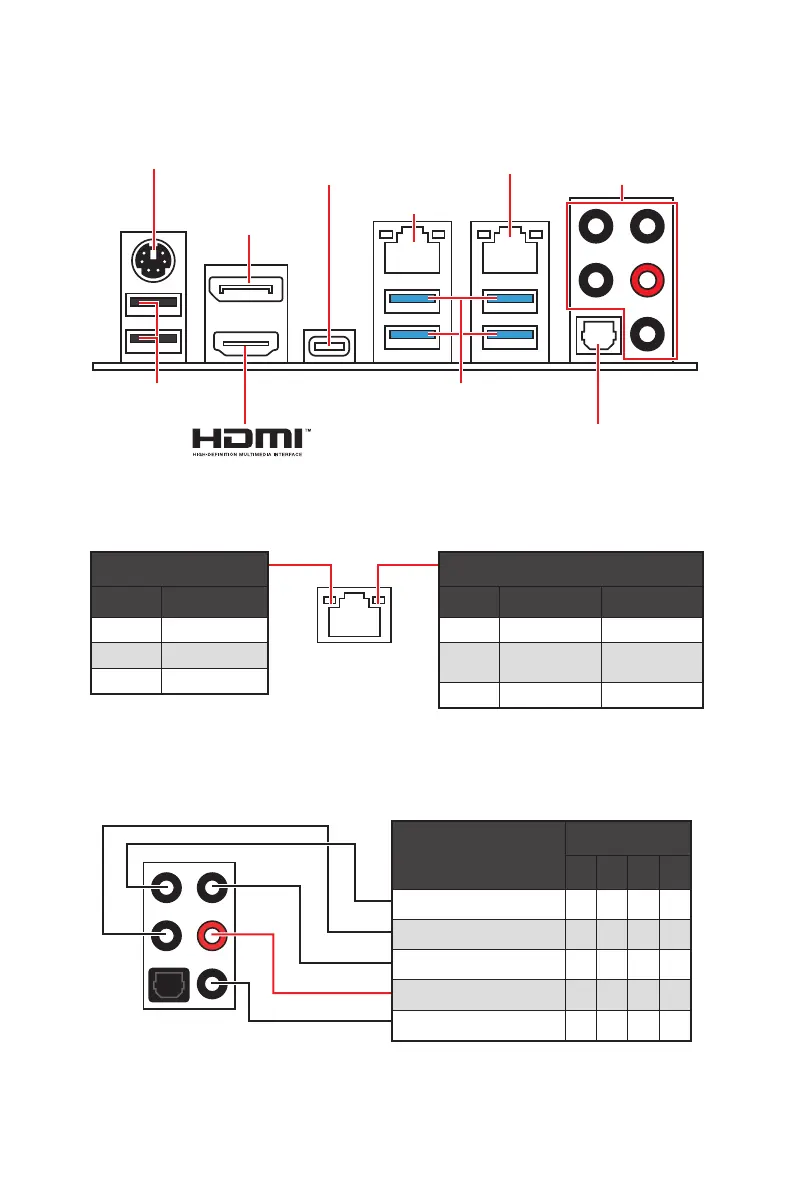

Rear I/O Panel
Audio Ports Configuration
Rear I/O Panel
PS/2 Combo port
1 Gbps LAN
2.5 Gbps LAN
DisplayPort
USB 2.0 Type-A
Audio Ports
Optical
S/PDIF-Out
USB 3.2 Gen 2x2
(20Gbps) Type-C
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status 1 Gbps LAN 2.5 Gbps LAN
Off 10 Mbps 10 Mbps
Green
100 Mbps/
1 Gbps
100 Mbps/
1 Gbps
Orange non-available 2.5 Gbps
LAN Port LED Status Table
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out  
Rear Speaker Out   
Line-In/ Side Speaker Out 
Line-Out/ Front Speaker Out    
Mic In
(: connected, Blank: empty)
USB 3.2 Gen 1
(5Gbps) Type-A
