MSI MAG B460 TOMAHAWK User Manual

Rebuilding RAID Array
A RAID 1, RAID 5 or RAID 10 volume is reported as Degraded when one of its hard
drive members fails or is temporarily disconnected, and data mirroring is lost. As a
result, the system can only utilize the remaining functional hard drive member. To re-
establish data mirroring and restore data redundancy, refer to the procedure below
that corresponds to the current situation.
1. Power off.
2. Replace the failed hard drive with a new one that is of equal or greater capacity.
3. Reboot the system and go to BIOS > SETTING > Advanced > Intel(R) Rapid Storage
Technology.

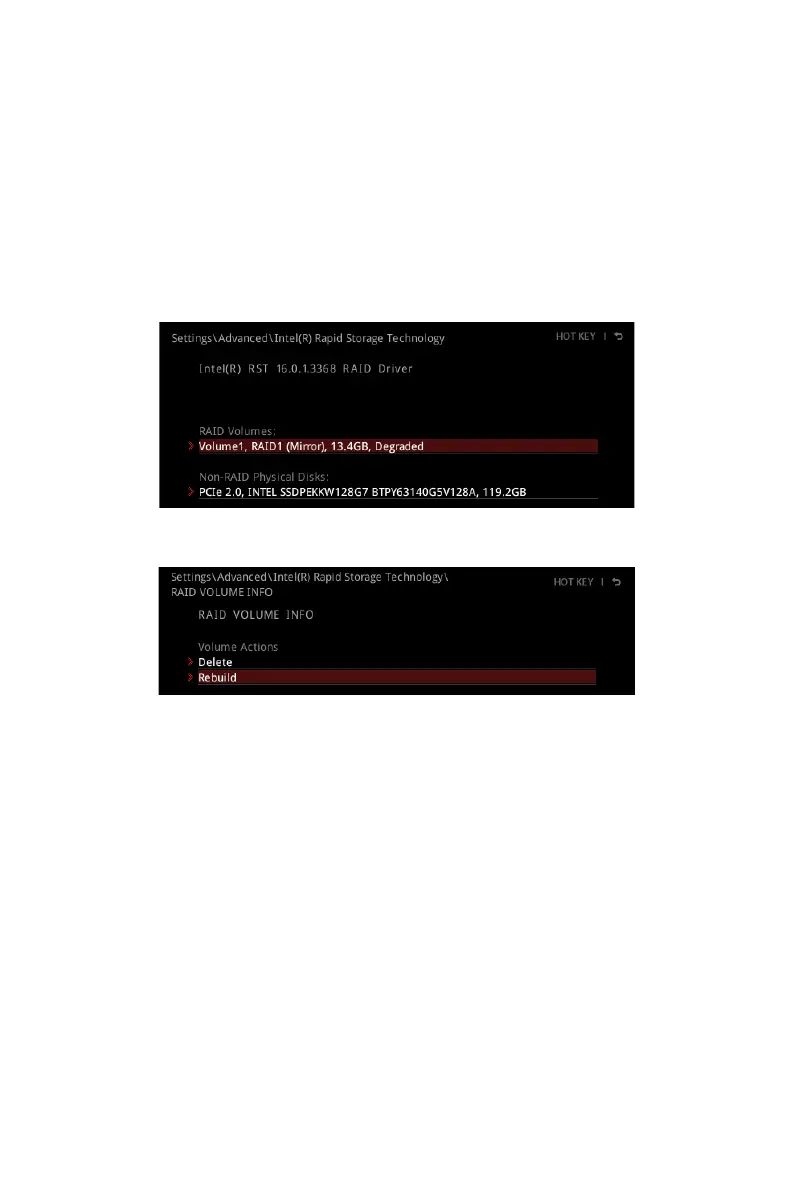

4. Select the Degraded RAID volume from the Intel(R) Rapid Storage Technology
screen to enter the RAID VOLUME INFO screen.
5. Select the Rebuild item and press Enter key to rebuild the new hard drive.
63
RAID Configuration

MSI MAG B460 TOMAHAWK Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium G
Audio chip	Realtek ALC1200
Component for	PC
Motherboard chipset	Intel B460
Audio output channels	7.1 channels
Motherboard form factor	ATX
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2666, 2933 MHz
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Wi-Fi	No
LAN controller	Realtek RTL8125B
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
BIOS type	UEFI AMI
ACPI version	6.2
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	3.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel processing technology support	-

Weight and Dimensions

Depth	244 mm
Width	305 mm
