5. Press F10 to save configuration and exit, and then reboot and press Delete key to

enter BIOS Setup menu.

6. Go to BIOS > SETTING > Advanced > Intel(R) Rapid Storage Technology sub-

menu.

Creating RAID Volume

1. As previously mentioned, enable Intel(R) Rapid Storage Technology.

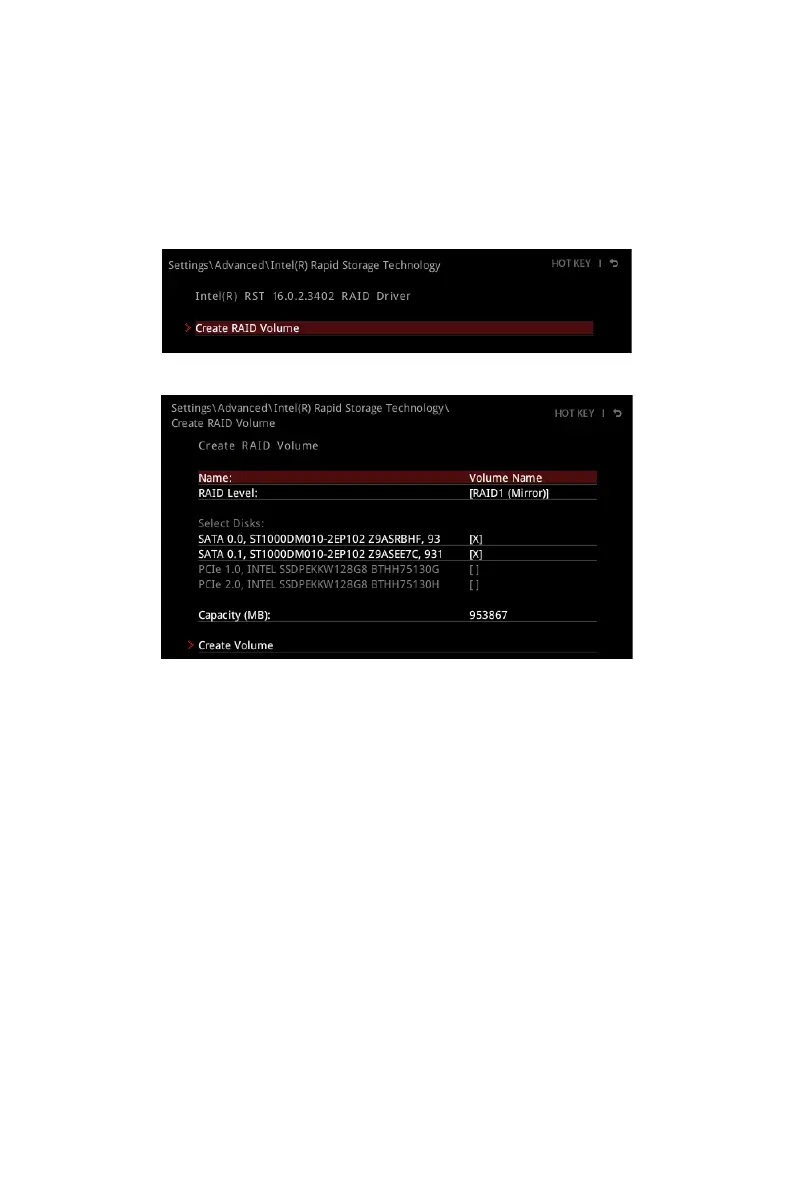

2. Enter Create RAID Volume screen. The following screen appears:

3. Specify a Name for RAID volume.

4. Select the RAID Level best suited to your usage model in RAID Level.

5. In the Select Disks field, press Space key or press Enter key and use the ↑↓

arrow keys to select the option X to select the disks you want to create for the

RAID volume.

6. Select the Strip Size for the RAID array. The available values range from 4KB to

128 KB in power of 2 increments. The strip size should be chosen based on the

planned drive usage. Here are some typical values:

RAID0 -128KB / RAID10 - 64KB / RAID5 - 64KB.

7. Select the capacity of the volume in the Capacity (MB) field. The default value is

the maximum volume capacity of the selected disks.

8. Go to the Create Volume field and press Enter to create the RAID volume. Upon

completion you are returned to the Intel(R) Rapid Storage Technology menu.

RAID Configuration

Questions and Answers:

Need help?

Do you have a question about the MSI MAG B460 TOMAHAWK and is the answer not in the manual?

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium G
Audio chip	Realtek ALC1200
Component for	PC
Motherboard chipset	Intel B460
Audio output channels	7.1 channels
Motherboard form factor	ATX
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2666, 2933 MHz
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Wi-Fi	No
LAN controller	Realtek RTL8125B
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
BIOS type	UEFI AMI
ACPI version	6.2
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	3.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel processing technology support	-
