Overview of Components

M2_1~2: M.2 Slots (Key M)

M2_1 M2_2

⚽

Video Demonstration

Watch the video to learn how to Install

M.2 module.

http://youtu.be/JCTFABytrYA

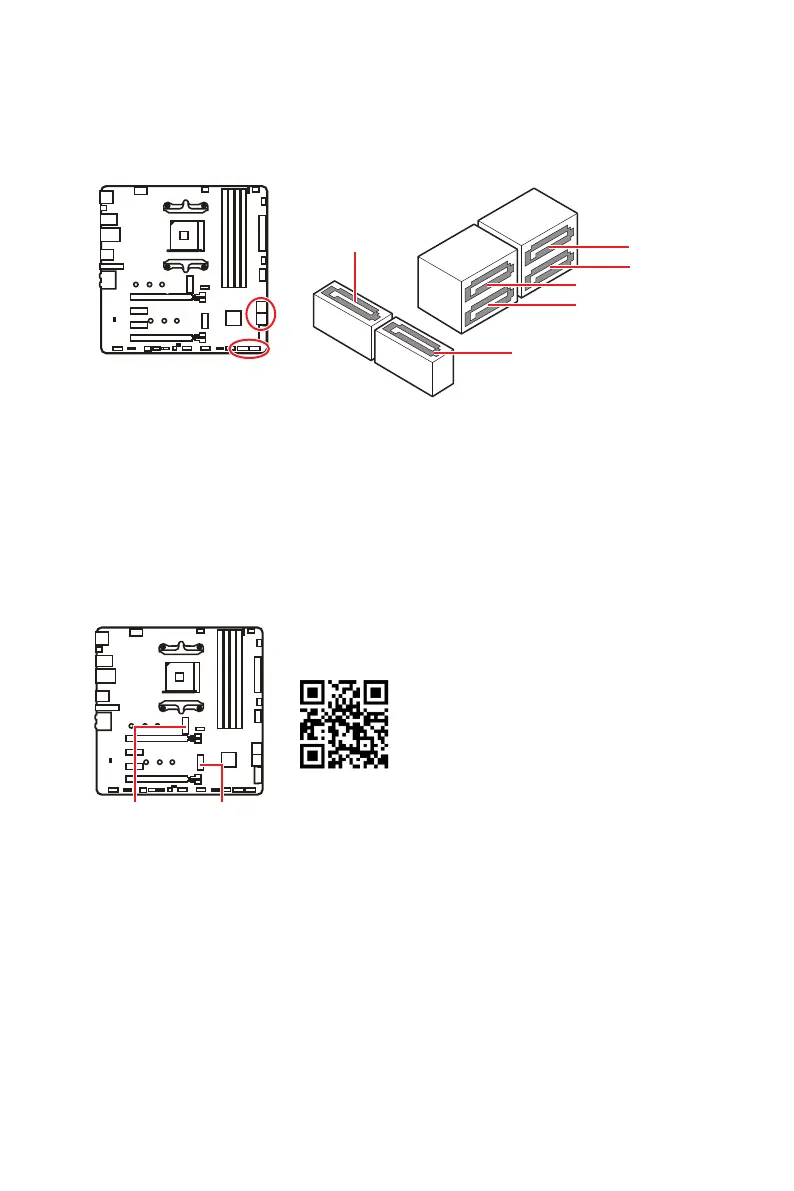

SATA1~6: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

⚠

Important

∙

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

∙

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.

SATA5

SATA1

SATA3

SATA6

SATA2

SATA4

M2_1 slot installation

1. Loosen the screws of M.2 SHIELD FROZR heatsink.

2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal

pads.

Questions and Answers:

Need help?

Do you have a question about the MSI MAG B550M MORTAR WIFI and is the answer not in the manual?

MSI MAG B550M MORTAR WIFI Specifications

General

Form Factor	Micro ATX
Chipset	AMD B550
Socket	AM4
Memory Slots	4 x DIMM
Max Memory	128 GB
Audio	Realtek ALC1200 Codec
RGB Support	Mystic Light RGB
Memory Speed	Up to 4400 MHz (OC)
Storage Interface	6 x SATA 6Gb/s
USB Ports	1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0
Networking	Realtek RTL8125B 2.5G LAN
LAN	2.5Gbps
Wi-Fi	Wi-Fi 6 AX200
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
