Overview of Components

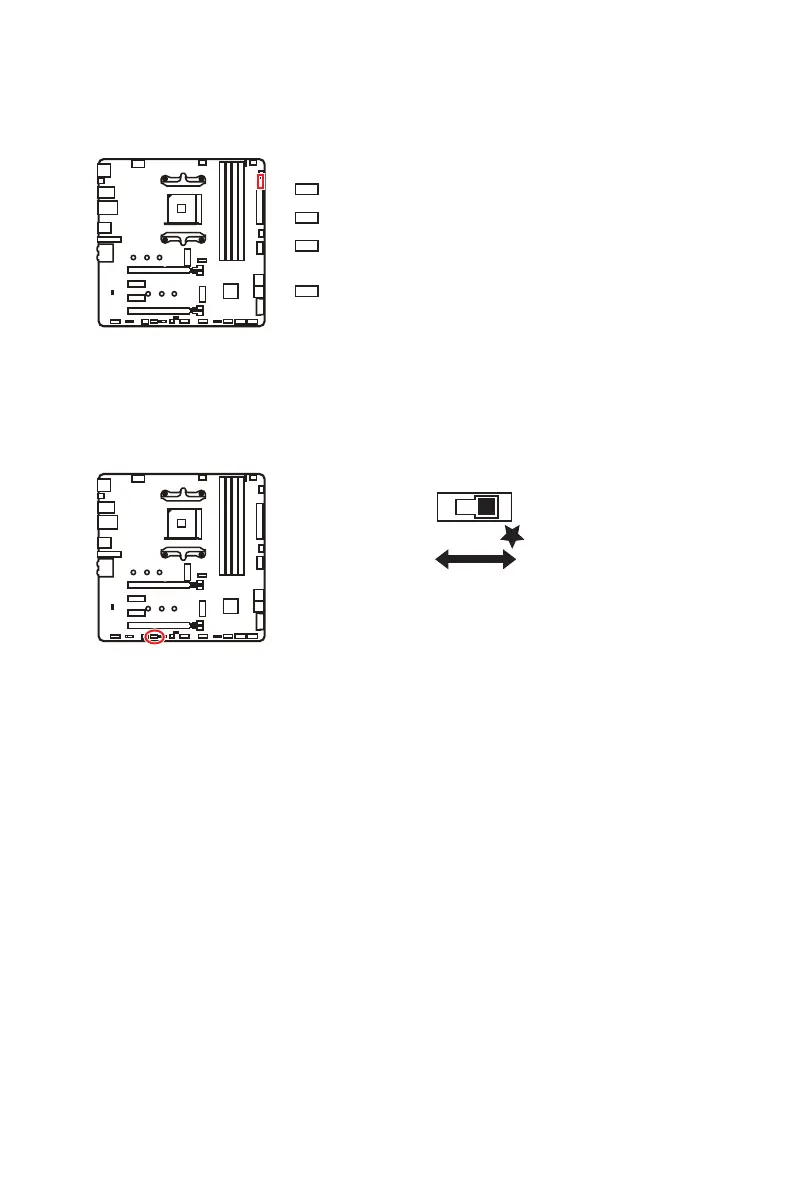

EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU/ PCIE/ M.2 device is not detected
or fail.
BOOT - indicates the booting device is not detected
or fail.
LED_SW1: EZ LED Control
This switch is used to switch on/ off all the LEDs of motherboard.
LED_OFF
LED_ON
(Default)

MSI MAG B550M MORTAR WIFI Specifications

General

Form Factor	Micro ATX
Chipset	AMD B550
Socket	AM4
Memory Slots	4 x DIMM
Max Memory	128 GB
Audio	Realtek ALC1200 Codec
RGB Support	Mystic Light RGB
Memory Speed	Up to 4400 MHz (OC)
Storage Interface	6 x SATA 6Gb/s
USB Ports	1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0
Networking	Realtek RTL8125B 2.5G LAN
LAN	2.5Gbps
Wi-Fi	Wi-Fi 6 AX200
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
