UEFI BIOS
System information - shows the CPU/ DDR speed, CPU/ MB temperature, MB/ CPU
type, memory size, CPU/ DDR voltage, BIOS version and build date.
Boot device priority bar - you can move the device icons to change the boot priority.
The boot priority from high to low is left to right.
Component Information - click on the CPU, Memory, Storage, Fan Info and Help
buttons to show the information of connected component.
Function buttons - enable or disable these functions by clicking on these buttons.
The function is enabled when the button shows ON .
Important
The function buttons will vary with the motherboard you purchased.
M-Flash - click on this button to enter the M-Flash menu that provides the way to
update BIOS with a USB flash drive.
Hardware Monitor - click on this button to enter the Hardware Monitor menu that
allows you to manually control the fan speed by percentage.

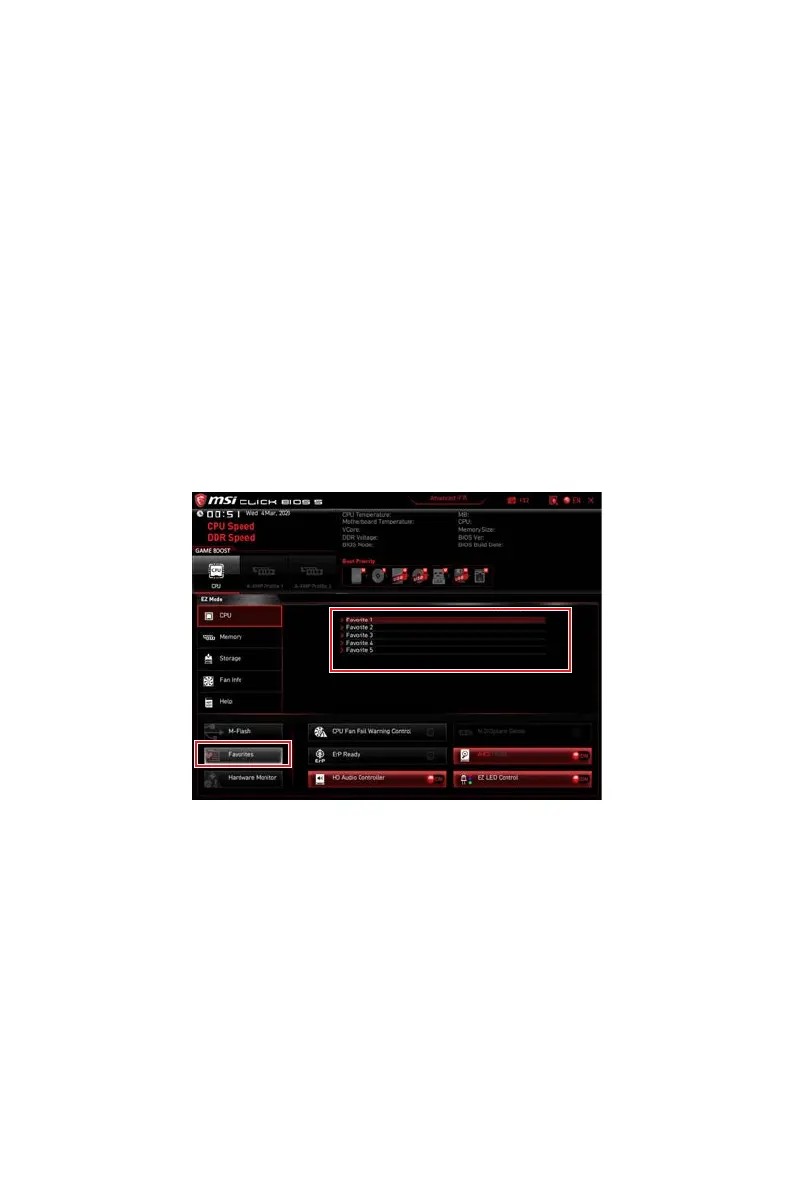

Favorites - click on this button or press the F3 key to show the Favorites window.
It provides 5 menus for you to create personal BIOS menu where you can save and
access favorite/ frequently-used BIOS setting items.
