Overview of Components
BAT1

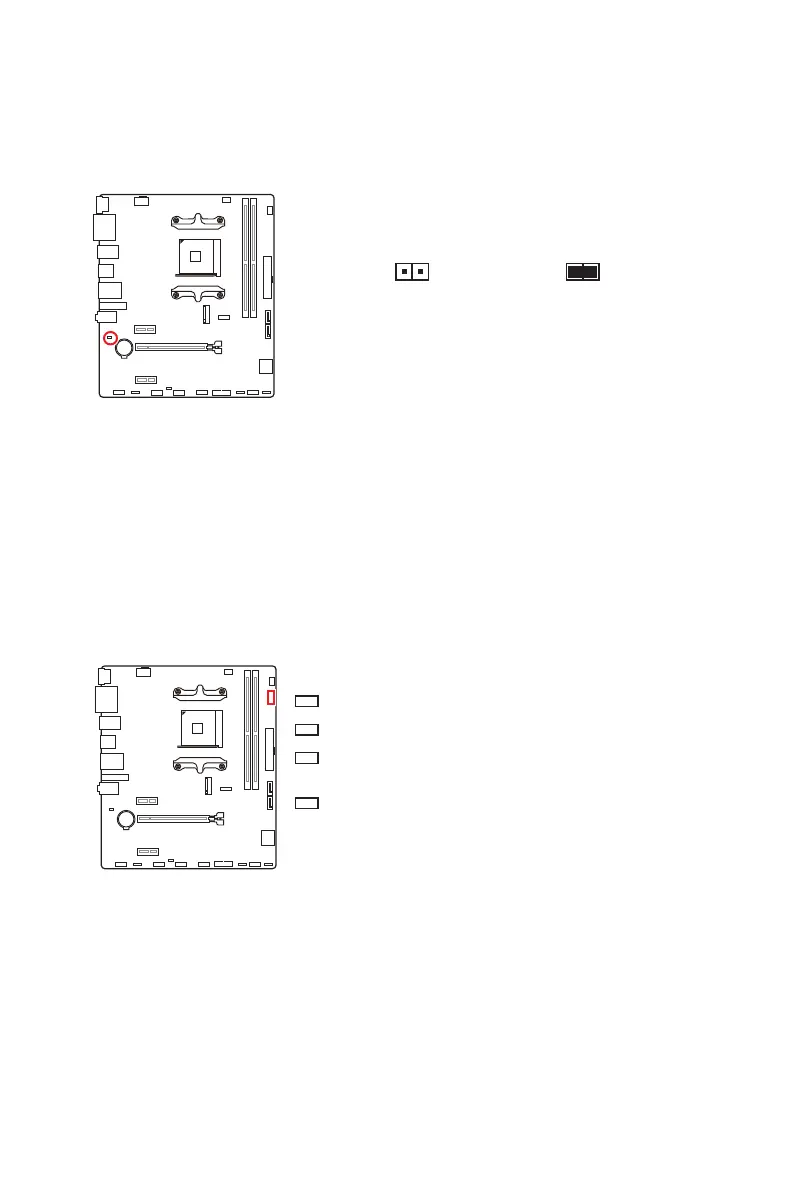

JBAT1: Clear CMOS (Reset BIOS) Jumper

the motherboard to save system configuration data. If you want to clear the system

Keep Data
(default)

Reset BIOS
Resetting BIOS to default values
1. Power off the computer and unplug the power cord.
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and Power on the computer.
BAT1
EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU
DRAM - indicates DRAM is not detected or fail.
VGA
or fail.
BOOT - indicates the booting device is not detected
or fail.
