CAUTION
Do not connect the wrong type of LED strips. The JRGB connector and the JRAINBOW

connector will result in damage to the LED strip.

Important
 The JRAINBOW connector supports up to 75 LEDs WS2812B Individually
Addressable RGB LED strips (5V/Data/Ground) with the maximum power rating of 3A

 Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
 
JRAINBOW1: Addressable RGB LED connectors
The JRAINBOW connector allows you to connect the WS2812B Individually
Addressable RGB LED strips 5V.
JRAINBOW
connector
JRAINBOW connector
System Fan connector
Rainbow RGB LED
extension cable
WS2812B Individually
Addressable RGB LED strips 5V
1
1 +5V 2 Data
3 No Pin 4 Ground

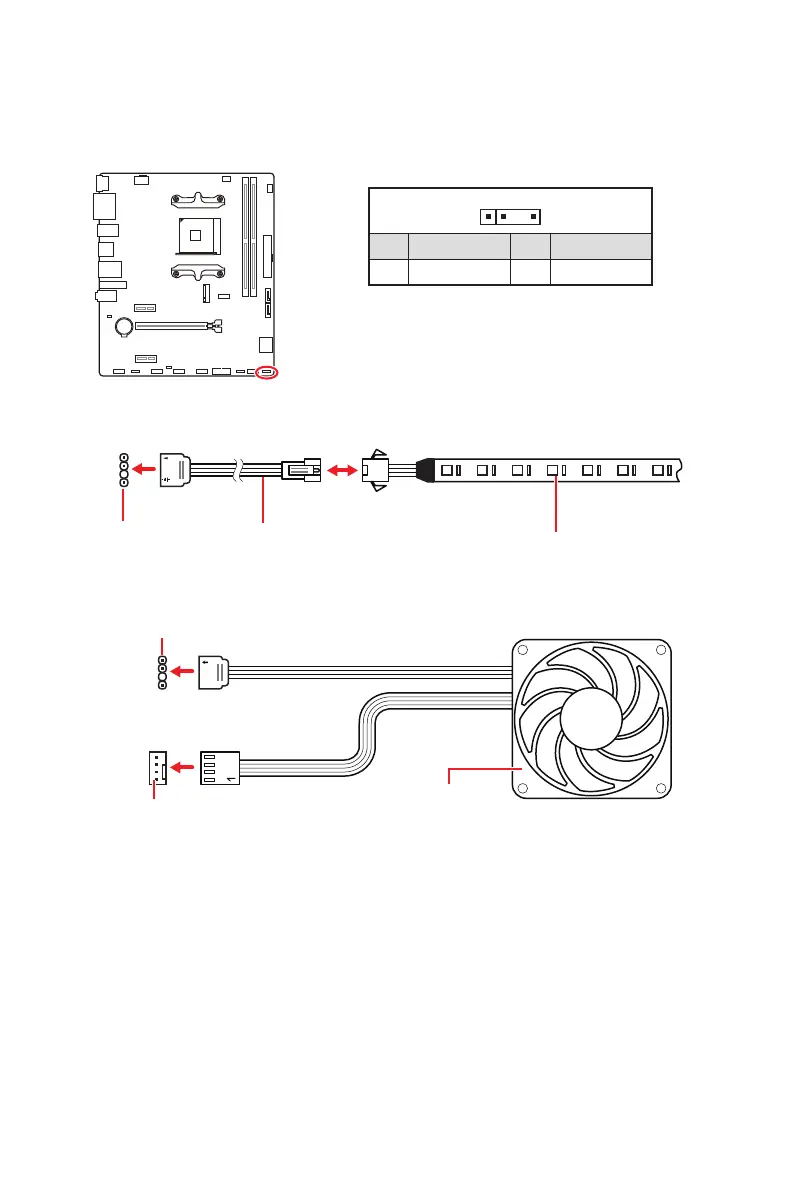

Addressable RGB LED Strip Connection
Addressable RGB LED Fan Connection
Addressable RGB LED Fan
