MSI MAG Z390 TOMAHAWK User Manual

48
BIOS Setup

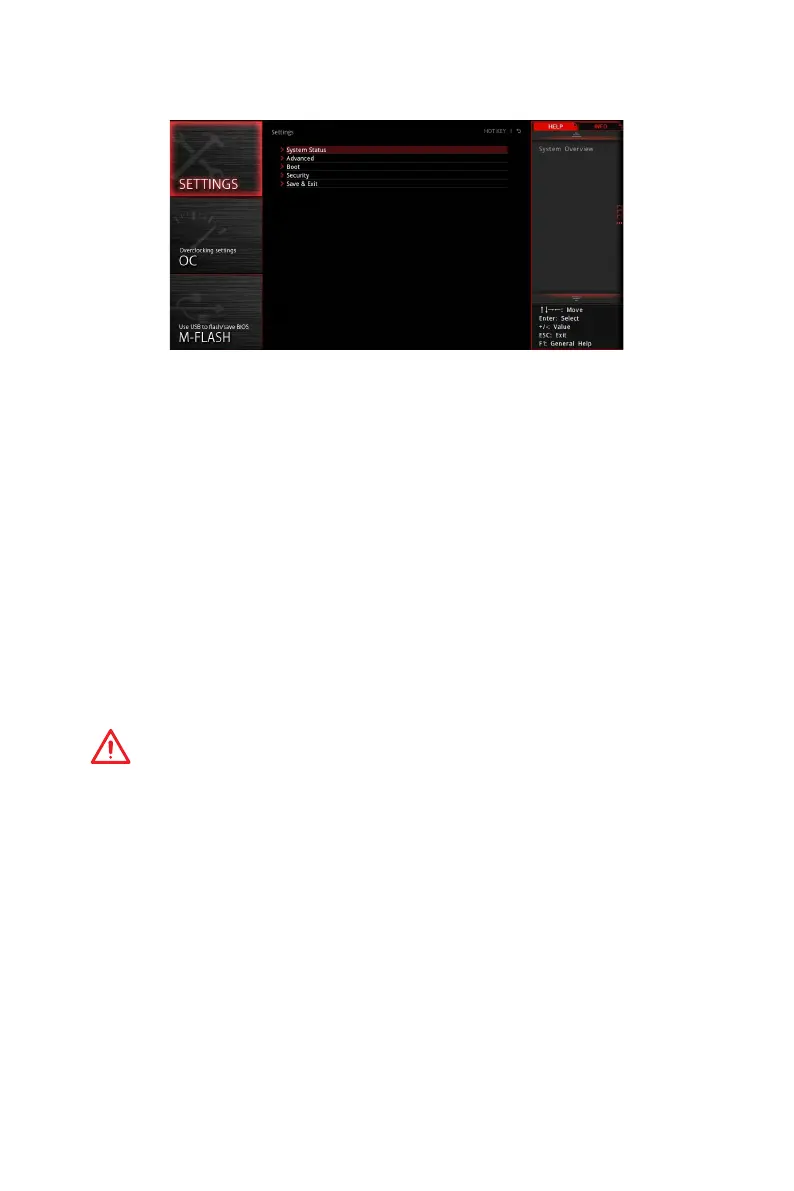

SETTINGS
System Status
f System Date
Sets the system date. Use tab key to switch between date elements.
The format is <day> <month> <date> <year>.
<day> Day of the week, from Sun to Sat, determined by BIOS. Read-only.
<month> The month from Jan. through Dec.
<date> The date from 1 to 31 can be keyed by numeric function keys.
<year> The year can be adjusted by users.
f System Time
Sets the system time. Use tab key to switch between time elements.
The time format is <hour> <minute> <second>.
f SATA PortX/ M2_X
Shows the information of connected SATA/ M.2 devices.
Important
If the connected SATA device is not displayed, turn off computer and re-check SATA
cable and power cable connections of the device and motherboard.
f System Information
Shows detailed system information, including CPU type, BIOS version, and Memory
(read only).
f DMI Information
Shows system information, desktop Board Information and chassis Information. (Read
only).
Advanced
f PCI Subsystem Settings
Sets PCI, PCI express interface protocol and latency timer. Press Enter to enter the
sub-menu.

MSI MAG Z390 TOMAHAWK Specifications

General

Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Maximum number of SMP processors	1
Audio chip	Realtek ALC892
Component for	PC
Motherboard chipset	Intel Z390
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Number of mounting holes	9
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400 MHz
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	3
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	2-Way CrossFireX
Number of SATA II connectors	0
Number of SATA III connectors	6
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	M.2, SATA III
Wi-Fi	No
LAN controller	Intel I211-AT, Intel I219V
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cables included	SATA
BIOS type	UEFI AMI
ACPI version	6.1
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.8

Weight and Dimensions

Depth	304 mm
Width	243 mm
