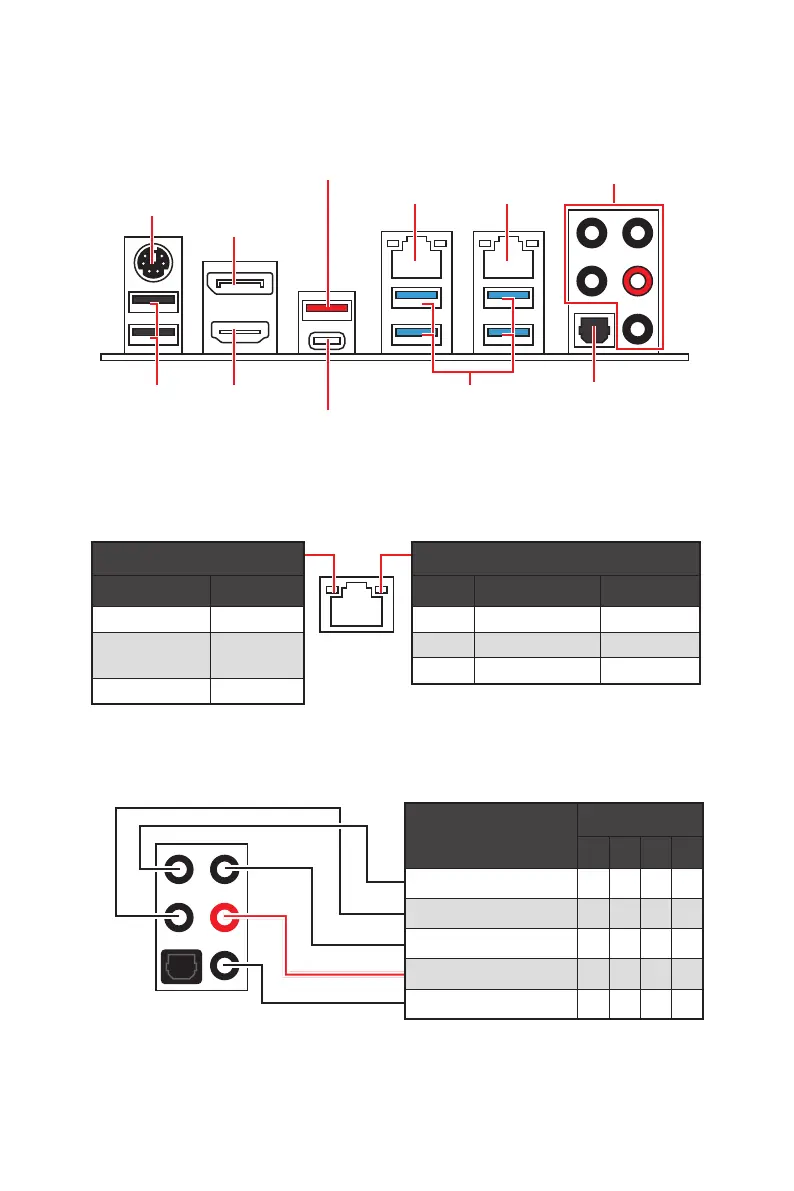

Rear I/O Panel
Rear I/O Panel
Audio Ports
Optical S/PDIF-Out
PS/2
HDMI port
Displayport
USB 2.0
2.5 Gbps LAN1 Gbps LAN
USB 3.2 Gen 2
10Gbps Type-A
USB 3.2 Gen 1 5Gbps
USB 3.2 Gen 2x2 20Gbps
Type-C
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Sub-woofer Out  
Rear Speaker Out   
Line-In/ Side Speaker Out 
Line-Out/ Front Speaker Out    
Mic In
Blank: empty)
Link/ Activity LED
Status Description
Off No link
Yellow (2.5Gb LAN)
Green (1Gb LAN)
Linked
Blinking Data activity
Speed LED
Status 2.5 Gbps LAN 1 Gbps LAN
Off 10 Mbps 󽚠
Green 100 Mbps / 1 Gbps 100 Mbps
Orange 2.5 Gbps 1 Gbps
LAN Port LED Status Table
