MSI MAG Z490 TOMAHAWK - M.2 Slots; M.2 Slot Installation Guide

31
Overview of Components
M2_1~2: M.2 Slots (Key M)
⚠
Important
∙ Intel® RST only supports PCIe M.2 SSD with UEFI ROM.
∙ Intel® Optane™ Memory Ready for all M.2 slots.
⚽
Video Demonstration
Watch the video to learn how to Install
M.2 module.
http://youtu.be/JCTFABytrYA
1
1
1
1
2
2

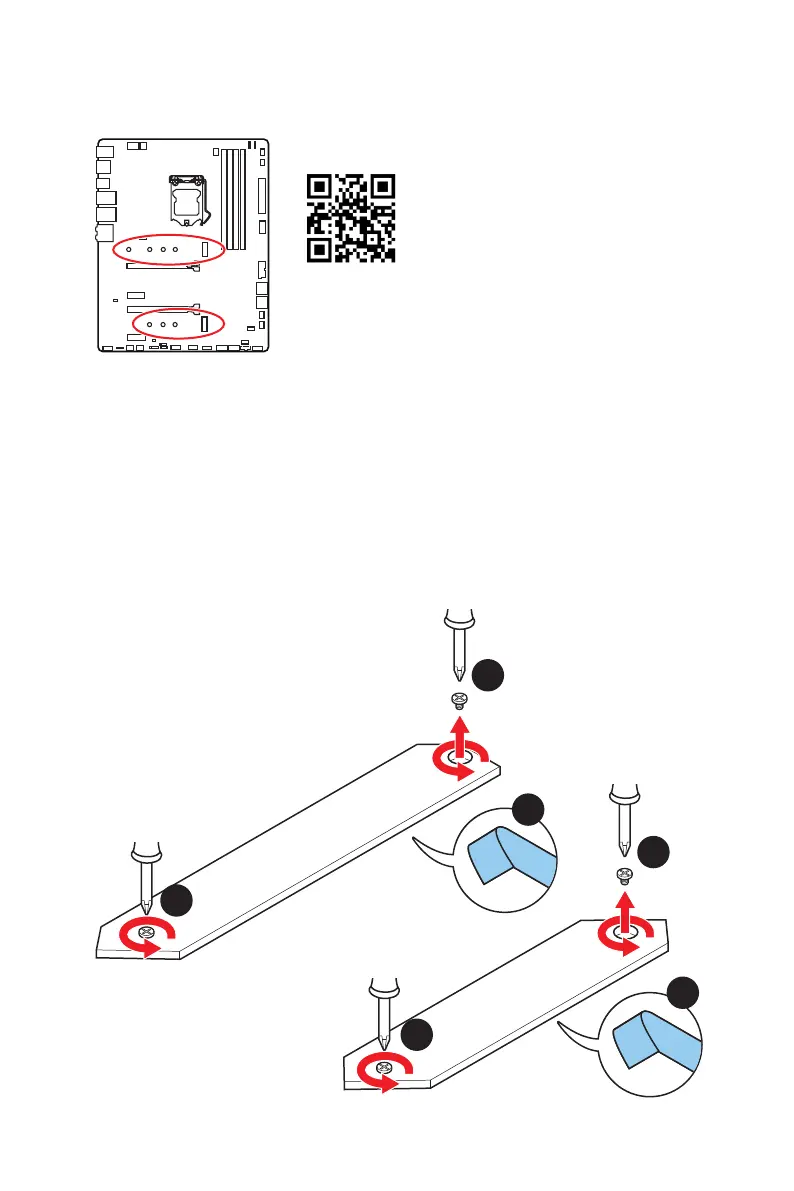

Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
M2_1
M2_2
