MSI MAG Z490 TOMAHAWK - Page 32

32
Overview of Components
30º30º
5
4
3
8.5H screw
Standoff

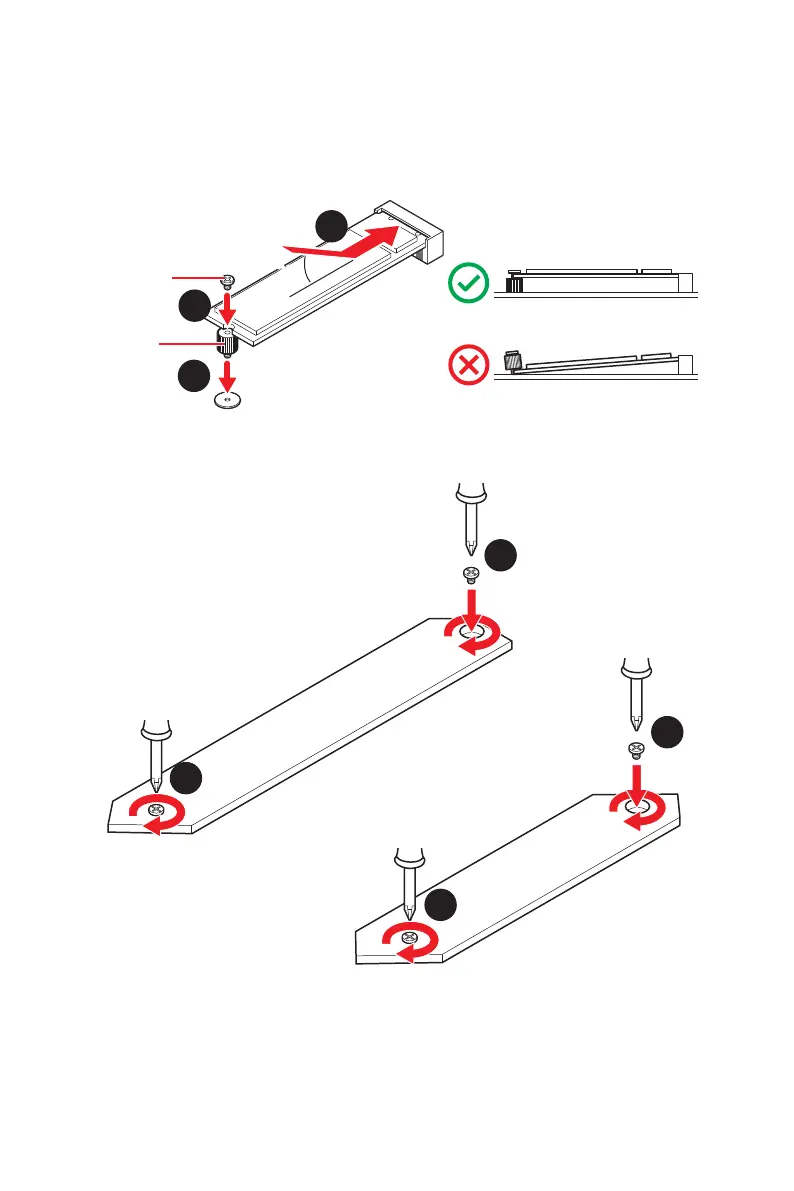

3. Move the position of the standoffs according to your M.2 SSDs length if need.
4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
5. Secure the M.2 SSD in place with the supplied M.2 8.5H screw.
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
6
6
6
6
