Overview of Components
1
1
1
D
+5V


Do not connect the wrong type of LED strips. The JRGB connector and the JRAINBOW
connector provide different voltages, and connecting the 5V LED strip to the JRGB
connector will result in damage to the LED strip.

Important
 The JRAINBOW connector supports up to 75 LEDs WS2812B Individually
Addressable RGB LED strips (5V/Data/Ground) with the maximum power rating of 3A
(5V). In the case of 20% brightness, the connector supports up to 200 LEDs.
 Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
 Please use MSI’s software to control the extended LED strip.
JRAINBOW1~2: Addressable RGB LED connectors
These JRAINBOW connectors allow you to connect the WS2812B Individually
Addressable RGB LED strips 5V.
JRAINBOW
connector
JRAINBOW connector
System Fan connector
JRAINBOW
extension cable
WS2812B Individually
Addressable RGB LED strips 5V

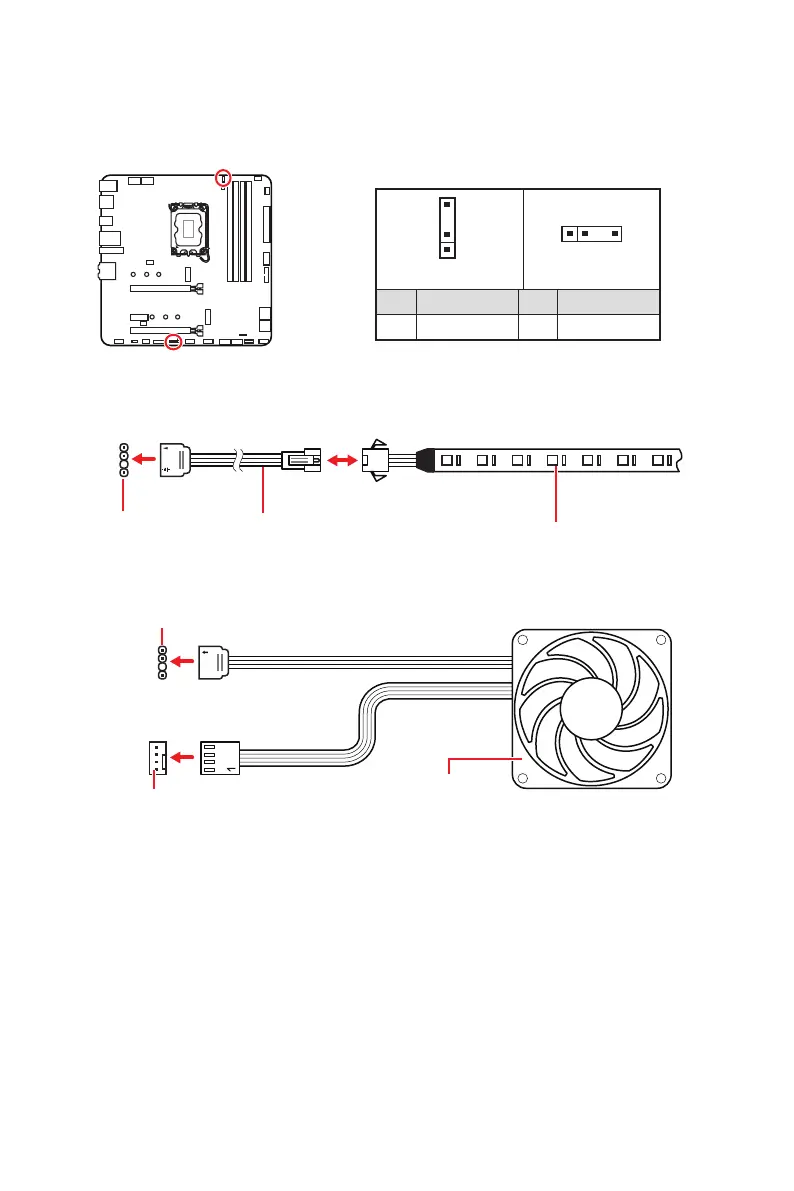

Addressable RGB LED Strip Connection
Addressable RGB LED Fan Connection
Addressable RGB LED Fan
1
JRAINBOW1
1
JRAINBOW2
1 +5V 2 Data
3 No Pin 4 Ground

MSI MAG Z690M MORTAR WIFI Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Maximum number of SMP processors	1
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel Z690
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2666, 2933, 3200 MHz
RAID levels	0, 1, 5, 10
RAID support	Yes
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	-
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	211 mm
Width	244 mm
