Overview of Components
M2_1~2: M.2 Slots (Key M)
M2_1
M2_2

Important
 Intel® RST only supports PCIe M.2 SSD with
UEFI ROM.
 M2_2 supports Intel® Optane™ Memory.

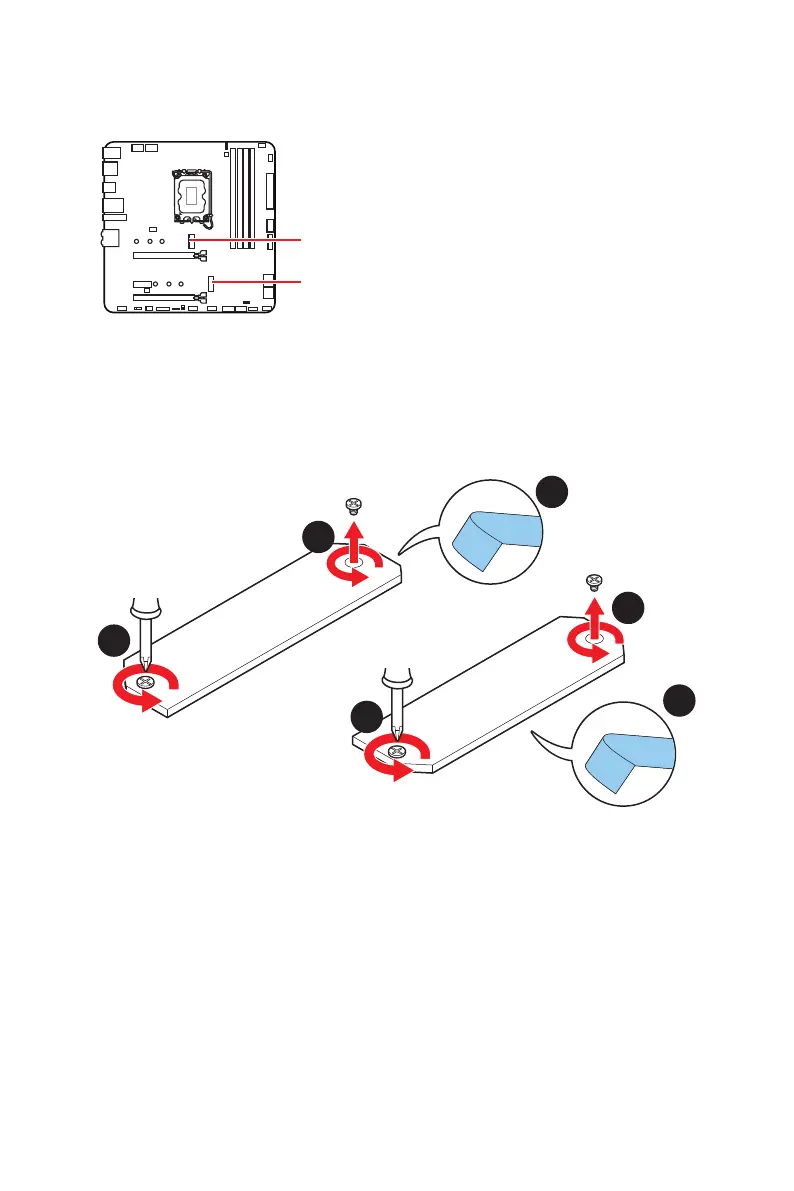

Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
2
1
1
1
1
M2_2
M2_1
