MSI MEG B550 UNIFY-X

35
Overview of Components
JCORSAIR1: CORSAIR Connector



LED strips and fans with MSI's software.
1

1 +5V 2 Data
3 Ground

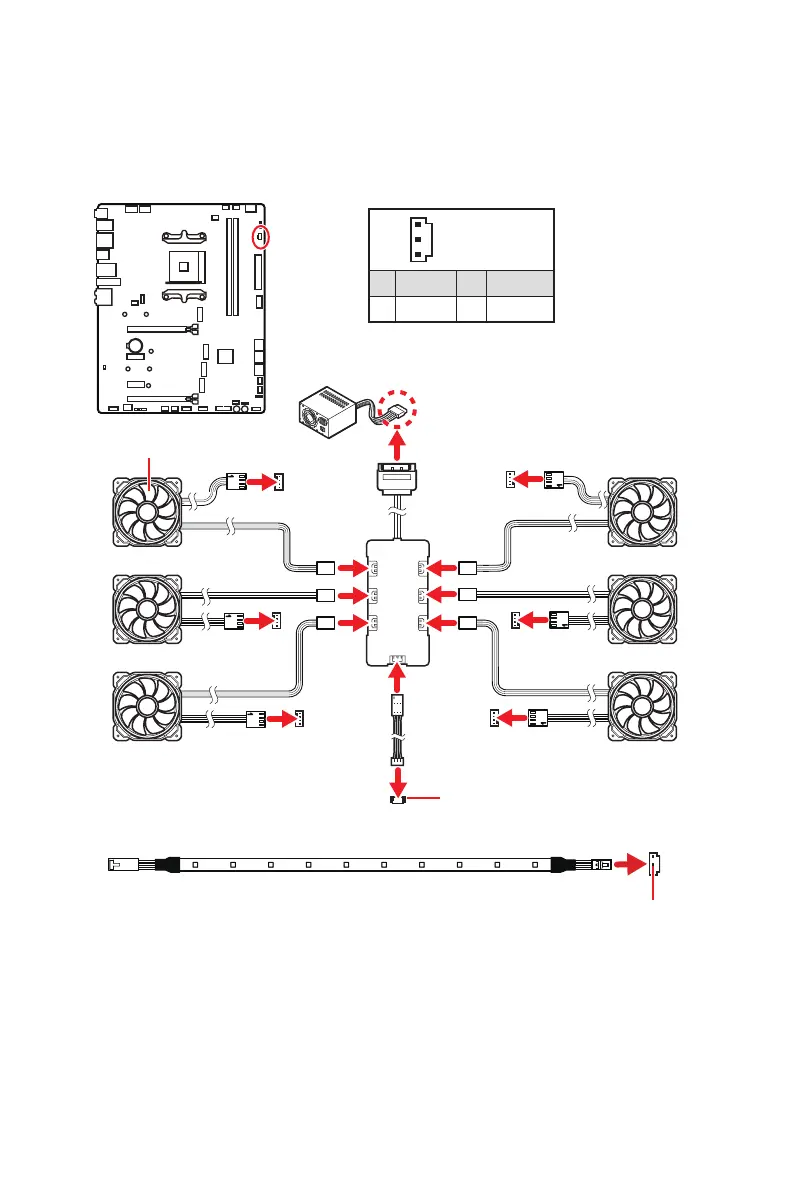

CORSAIR RGB Fan Connection

Important
 Fans must start at 1 and continue in series. 1 > 2 > 3 > 4 > 5 > 6. Any fan not
connected in series will break communication and the RGB LED lighting function will
not work.
 Quantity of RGB LED Fans or RGB LED Lighting PRO strips supported may differ
between models. Please refer to the motherboard specification.
 
time.

SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
1
2
34
5
6

SATA power
CORSAIR Lighting Node PRO Connection


