MSI MEG Z490 UNIFY User Manual

65
UEFI BIOS
Advanced Mode

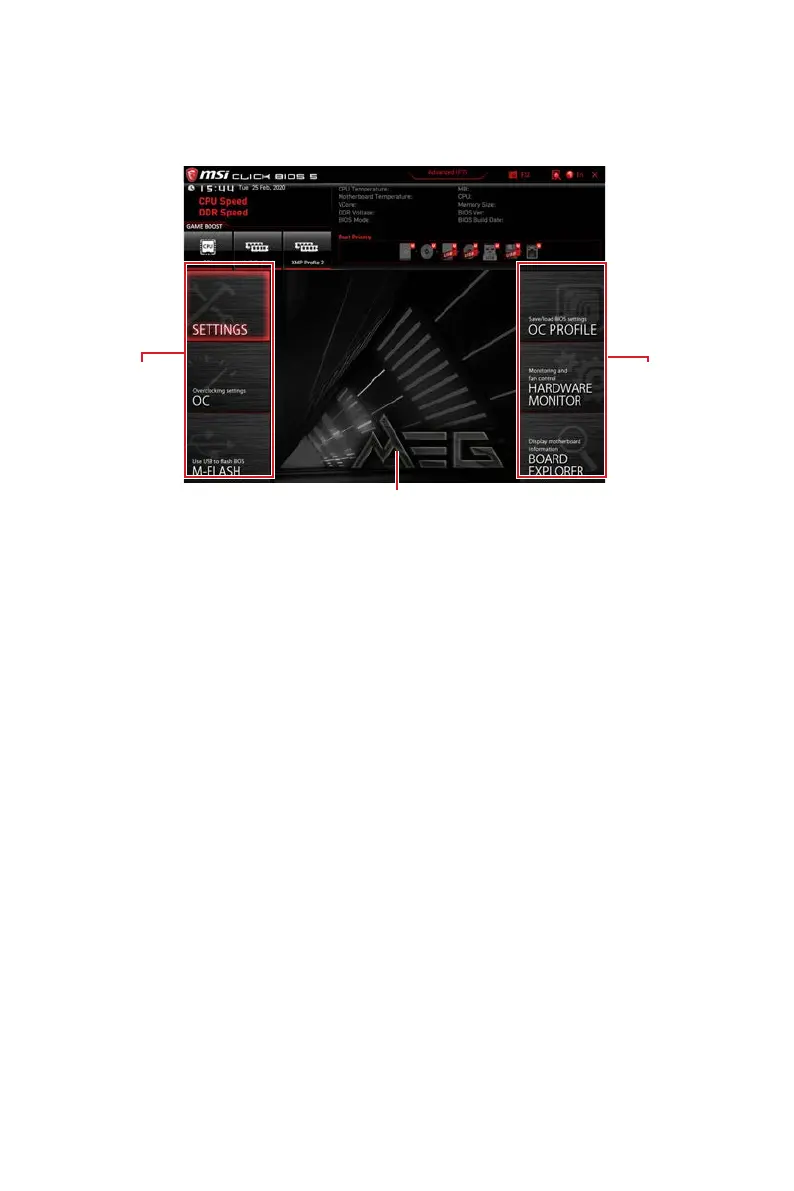

Press Setup Mode switch or F7 function key can switch between EZ Mode and
Advanced Mode in BIOS setup.
BIOS menu
selection
Menu display
BIOS menu
selection
∙ BIOS menu selection - the following options are available:
▪ SETTINGS - allows you to specify the parameters for chipset and boot devices.
▪ OC - allows you to adjust the frequency and voltage. Increasing the frequency
may get better performance.
▪ M-FLASH - provides the way to update BIOS with a USB flash drive.
▪ OC PROFILE - allows you to manage overclocking profiles.
▪ HARDWARE MONITOR - allows you to set the speeds of fans and monitor
voltages of system.
▪ BOARD EXPLORER - provides the information of installed devices on this
motherboard.
∙ Menu display - provides BIOS setting items and information to be configured.

MSI MEG Z490 UNIFY Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium G
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2666, 2933 MHz
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0
Parallel processing technology support	2-Way SLI, 3-Way CrossFireX
USB 2.0 connectors	2
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.1
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC1220
Component for	PC
Motherboard chipset	Intel Z490
Audio output channels	7.1 channels
Motherboard form factor	ATX
Number of mounting holes	9
Windows operating systems supported	Windows 10 x64
BIOS type	UEFI AMI
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
