Mainboard Shield
Mainboard Shield Disassembly

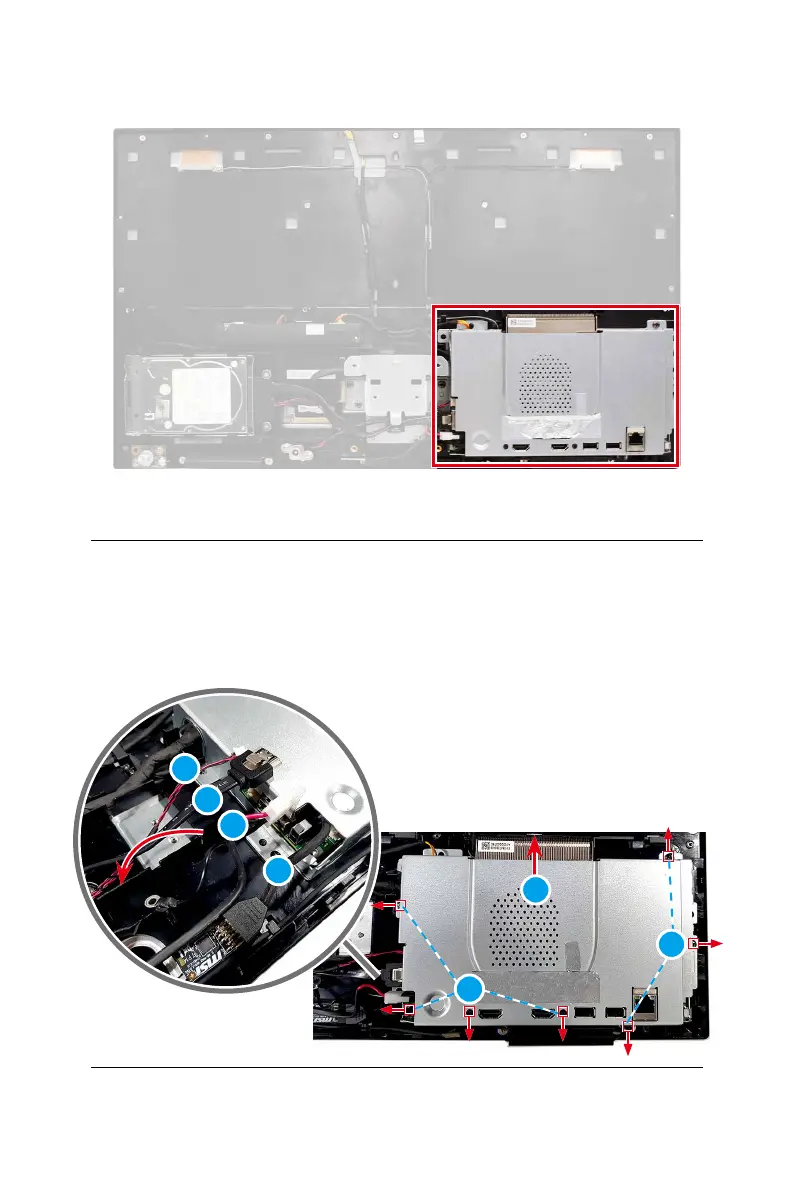

1. Locate and disconnect the SATA power cable ❶, SATA data cable ❷, DC-in
cable ❸, and TPM module cable ❹.
2. Locate and remove the screws
❺ that secure the mainboard shield with a
cross-head screwdriver.
3. Lift the mainboard shield
❻ up to uncover the mainboard.
