MSI Modern Series Service Guide

27
Mainboard Shield Assembly

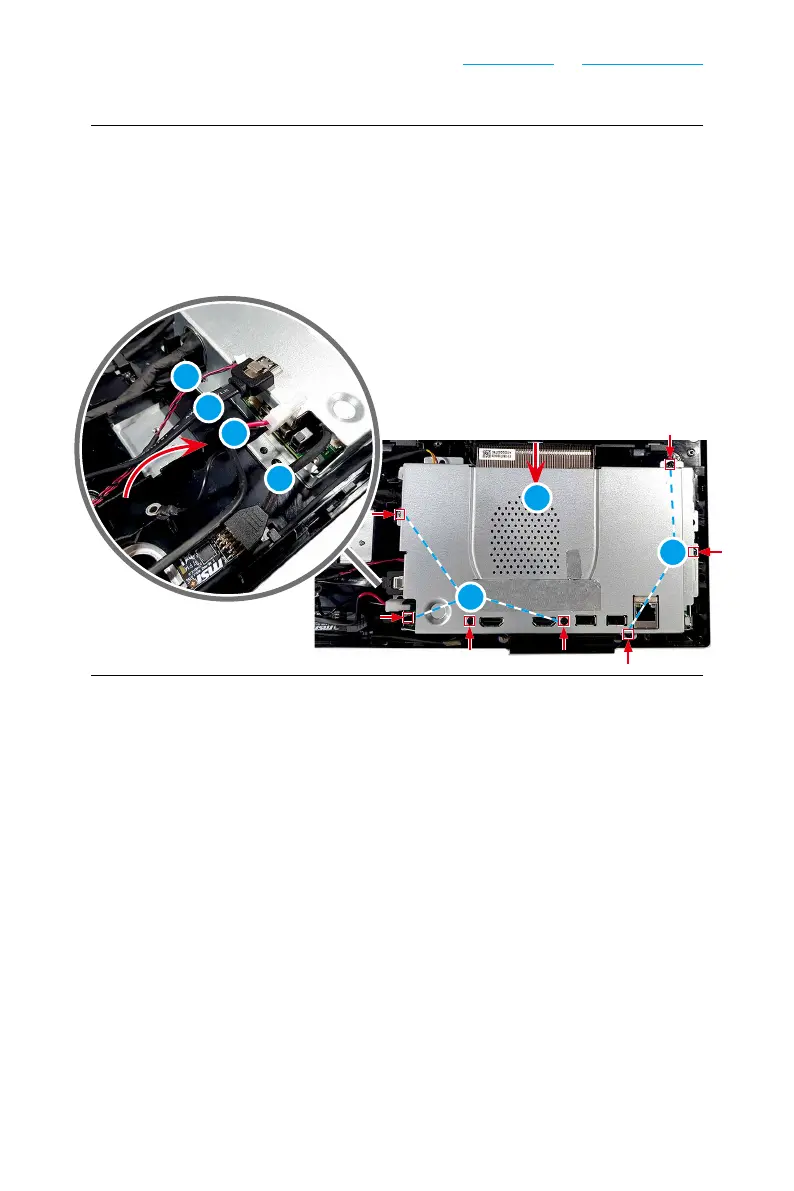

1. Place the mainboard shield ❶ atop the mainboard with screw holes aligned.
2. Tighten the screws
❷ with a cross-head screwdriver to secure the mainboard
shield in place.
3. Connect the SATA power cable
❸, SATA data cable ❹, DC-in cable ❺, and
TPM module cable ❻.
3
4
5
6
1
2
2
