Fan & Thermal Module

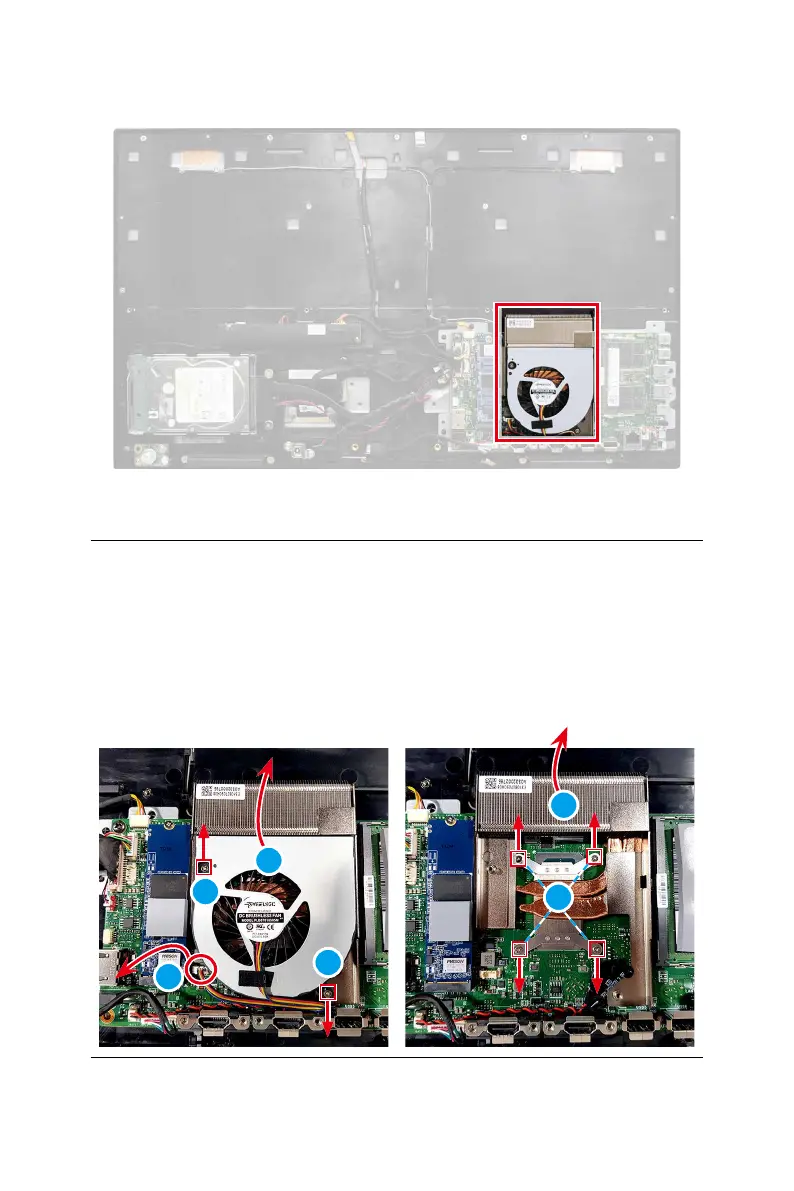

Fan & Thermal Module Disassembly
1. Disconnect the fan cable ❶ from the mainboard.
2. Remove the screws
❷ that secure the fan with a cross-head screwdriver.
3. Lift the fan
❸ and its cable off the mainboard.
4. Remove the screws
❹ that secure the thermal module with a cross-head
screwdriver.
5. Lift the thermal module
❺ off the mainboard.
2
1
2
3
5
4
