MSI Modern Series Service Guide

31

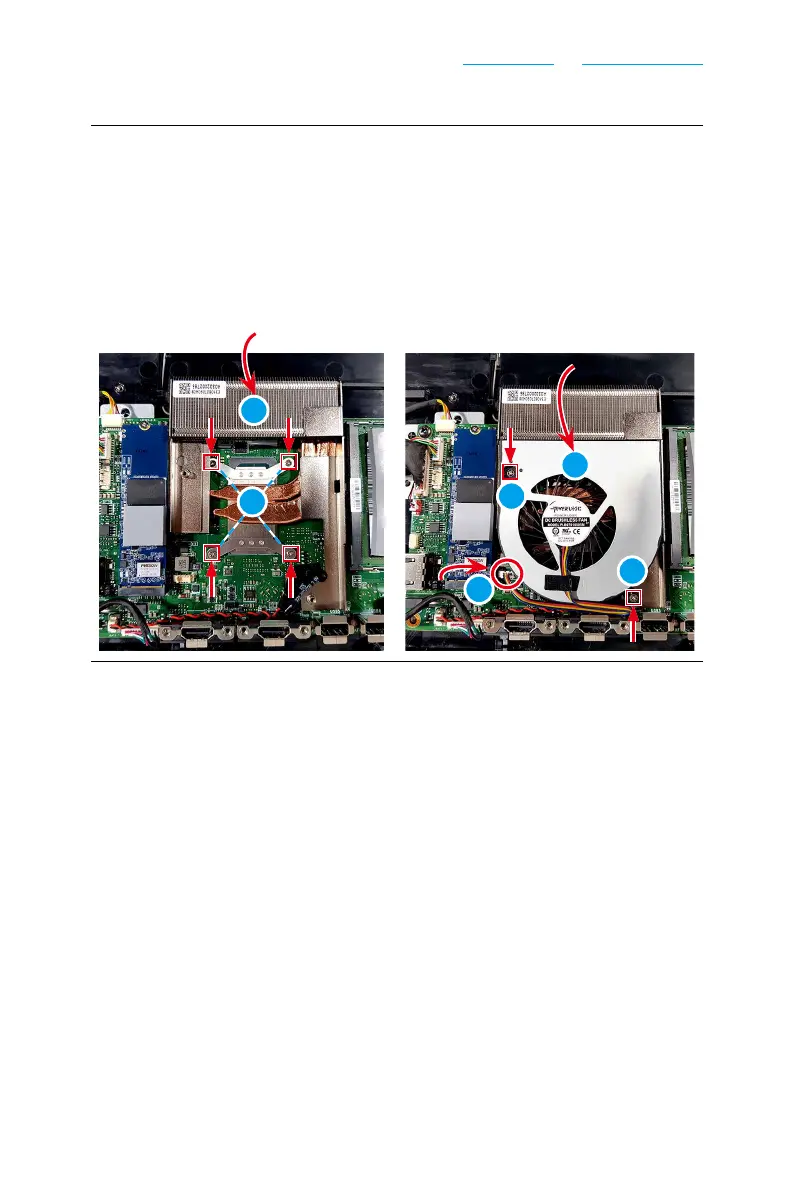

Fan & Thermal Module Assembly
1. Place the thermal module ❶ atop the CPU with screw holes aligned.
2. Replace and tighten the screws
❷ with a cross-head screwdriver to secure the
thermal module in place.
3. Place the fan
❸ atop the thermal module with screw holes aligned.
4. Replace and tighten the screws
❹ with a cross-head screwdriver to secure the
fan in place.
5. Connect the fan cable
❺ to the mainboard.
2
1
4
5
4
3
