Mainboard Assembly

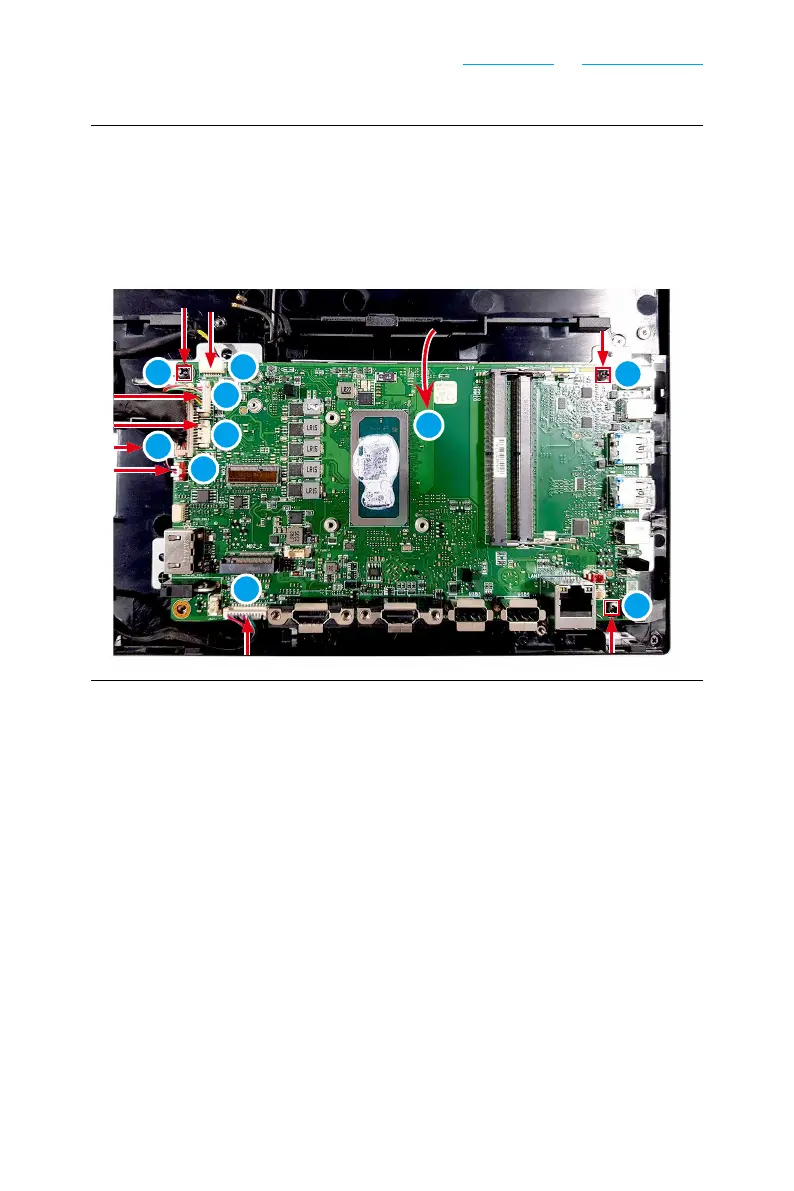

1. Place the mainboard ❶ atop the LCD bezel with screw holes aligned.
2. Replace and tighten the screws
❷ with a cross-head screwdriver to secure the
mainboard in place.
3. Connect the converter board cable
❸, webcam cable ❹, touch cable ❺ (for
touch SKU), LVDS cable ❻, Navi board cable ❼, and TPM cable ❽ to the
mainboard.
