Mainboard
Mainboard Disassembly

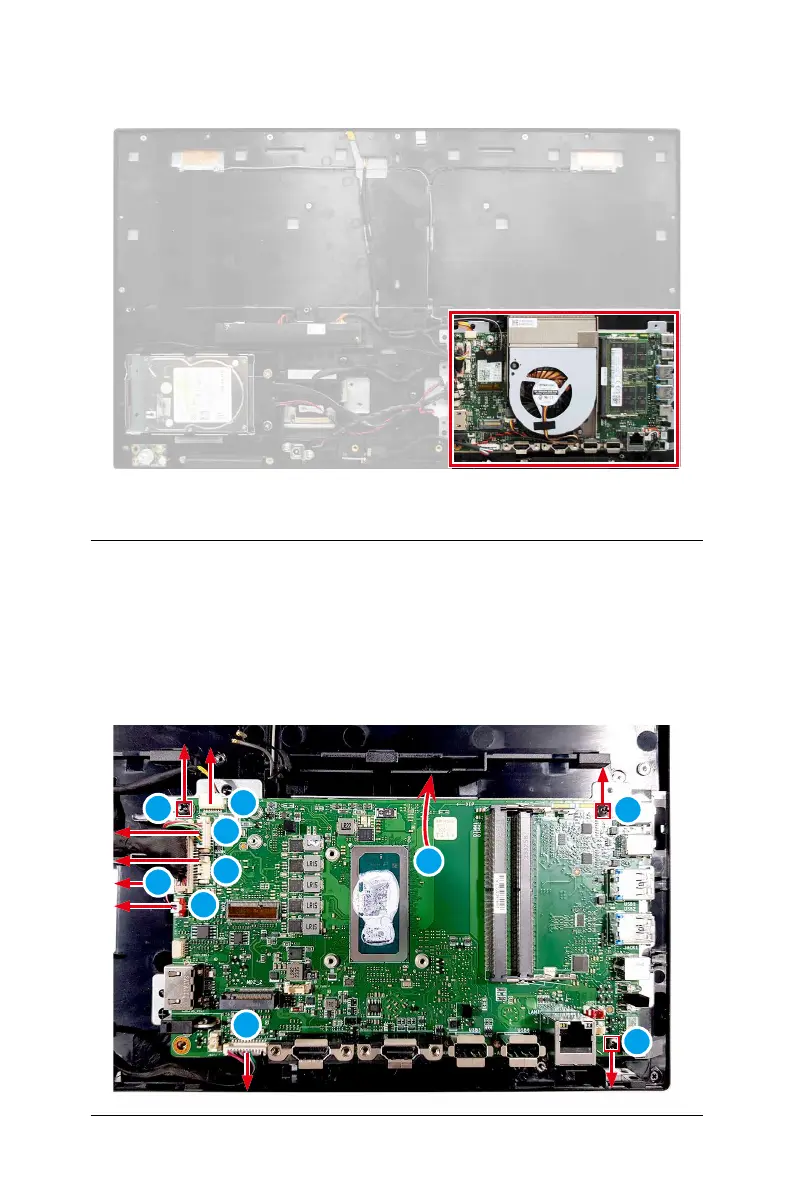

1. After disassembling the fan, thermal module and all onboard components,
disconnect the converter board cable ❶, webcam cable ❷, touch cable ❸ (for
touch SKU), LVDS cable ❹, Navi board cable ❺, and TPM cable ❻ from the
mainboard.
2. Remove the screws
❼ that secure the mainboard with a cross-head
screwdriver.
3. Lift and remove the mainboard
❽ from the LCD bezel.
7
1
2
4
5
6
7
7
8
3
