MSI MPG B650I EDGE WIFI User Manual

37

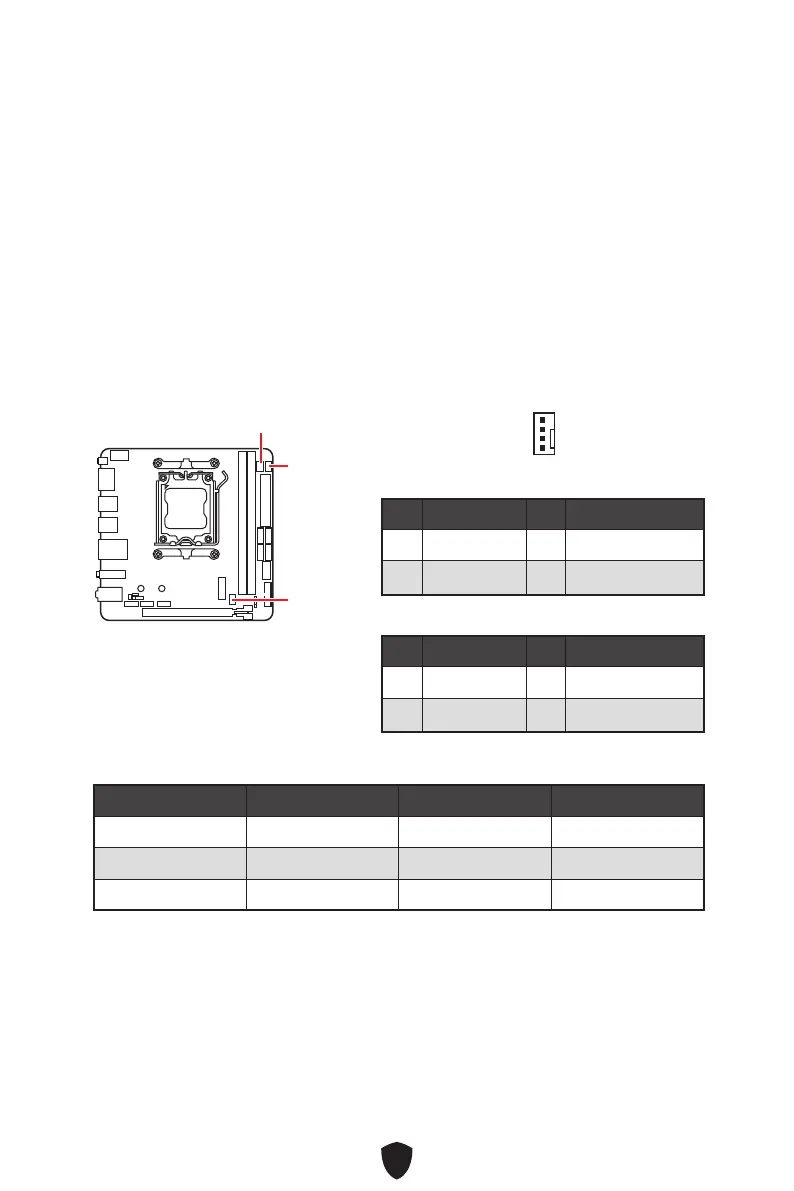

CPU_FAN1, PUMP_FAN1, SYS_FAN1: Fan Connectors
Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode.
PWM Mode fan connectors provide constant 12V output and adjust fan speed with
speed control signal. DC Mode fan connectors control fan speed by changing voltage.
The auto mode fan connectors can automatically detect PWM and DC mode.
You can control fans in BIOS> HARDWARE MONITOR panel. It allows you to set DC
or PWM to your fan type. Check the Smart Fan Mode, the fan speed will change
according to the CPU or system temperature. Uncheck the Smart Fan Mode, the fan
will spin at maximum speed.

Important
Make sure fans are working properly after switching the PWM/ DC mode.
CPU_FAN1
PUMP_FAN1
SYS_FAN1
1
PWM Mode pin definition
Pin Signal Name Pin Signal Name
1 Ground 2 +12V
3 Sense 4 Speed Control Signal
DC Mode pin definition
Pin Signal Name Pin Signal Name
1 Ground 2 Voltage Control
3 Sense 4 NC
Fan connector specifications
Connector Default fan mode Max. current Max. power
CPU_FAN1 Auto mode 3A 36W
PUMP_FAN1 PWM mode 3A 36W
SYS_FAN1 DC mode 2A 24W

MSI MPG B650I EDGE WIFI Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Non-ECC	Yes
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
RAID levels	0, 1, 10
Supported storage drive interfaces	M.2, SATA
Parallel processing technology support	-
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
LAN controller	Realtek RTL8125B
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC4080
Component for	PC
Motherboard chipset	AMD B650
PC health monitoring	Fan
Audio output channels	7.1 channels
Motherboard form factor	mini ATX
Windows operating systems supported	Windows 10 x64

Weight and Dimensions

Width	170 mm
