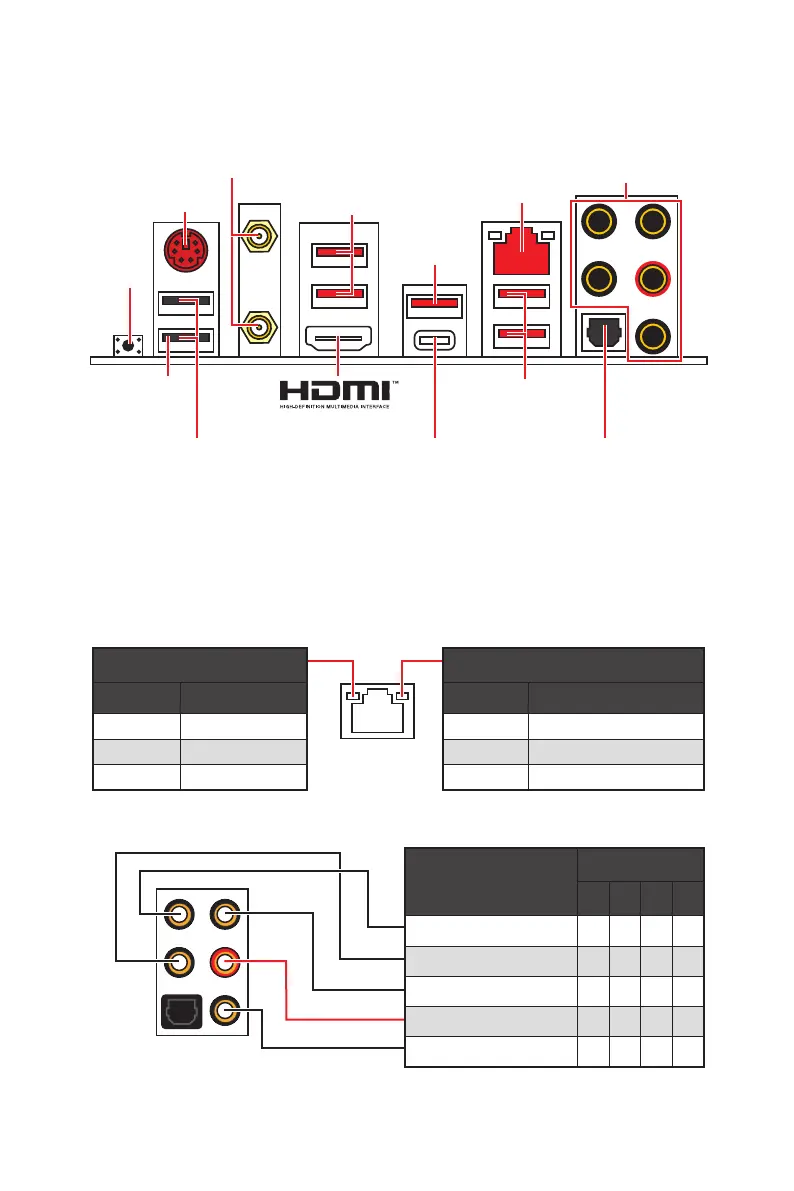

Rear I/O Panel
Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out ● ●
Rear Speaker Out ● ● ●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ● ● ● ●
Mic In
(●: connected, Blank: empty)
USB 3.2 Gen 2
Type-C*
USB 3.2
Gen 2
Type-A*
PS/2
LAN
USB 2.0 Type-A
Audio Ports
Optical S/PDIF-Out
Flash BIOS
Button
Flash BIOS
Port
USB 3.2
Gen 2
Type-A
*USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/Ryzen™
with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™Graphics)
y Flash BIOS Port/ Button - Please refer to page 45 for Updating BIOS with Flash BIOS
Button.
Wi-Fi Antenna
connectors
USB 3.2
Gen1
Type-A
