BIOS Setup

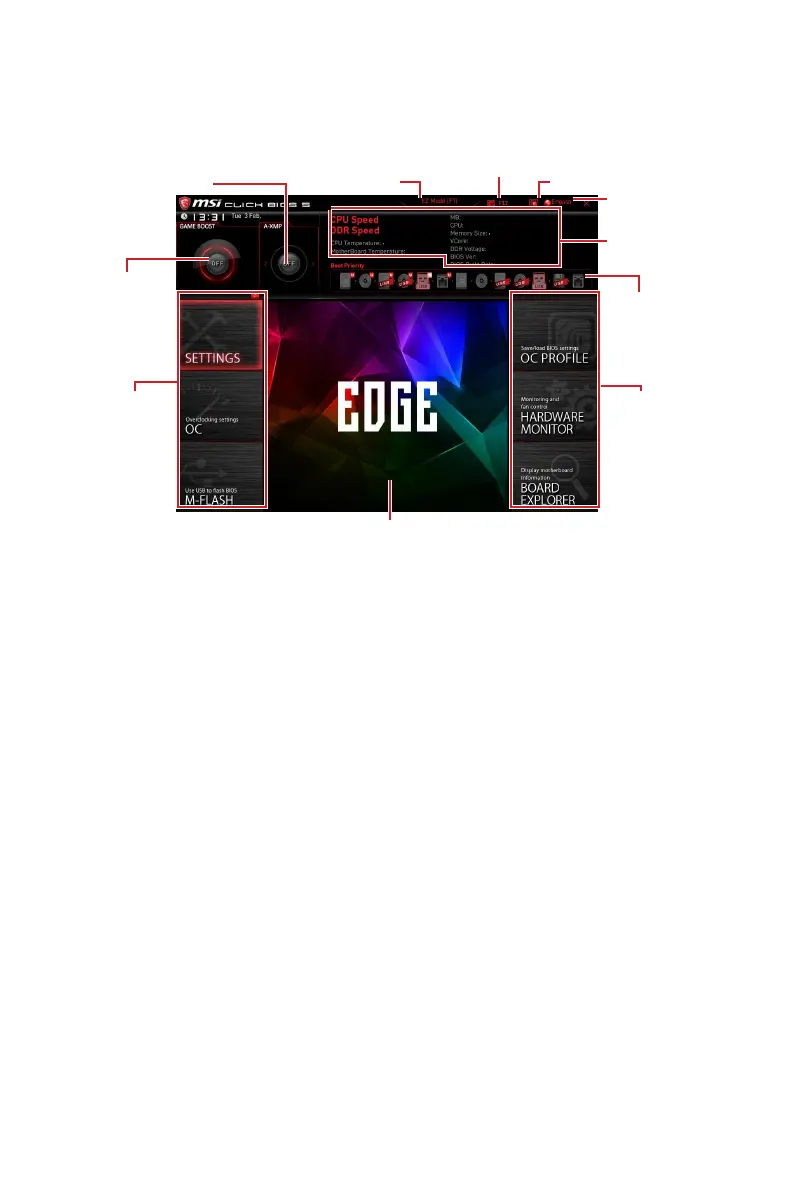

Advanced Mode
Press Setup Mode switch or F7 function key can switch between EZ Mode and
Advanced Mode in BIOS setup.
A-XMP switch
GAME BOOST
switch
System
information
Boot device
priority bar
BIOS menu
selection
Language
Search
Screenshot
Setup Mode switch
Menu display
BIOS menu
selection
y BIOS menu selection - the following options are available:
 SETTINGS - allows you to specify the parameters for chipset and boot devices.
 OC - allows you to adjust the frequency and voltage. Increasing the frequency may
get better performance.
 M-FLASH - provides the way to update BIOS with a USB flash drive.
 OC PROFILE - allows you to manage overclocking profiles.
 HARDWARE MONITOR - allows you to set the speeds of fans and monitor voltages
of system.
 BOARD EXPLORER - provides the information of installed devices on this
motherboard.
y Menu display - provides BIOS setting items and information to be configured.

MSI MPG X570 Gaming Edge WIFI Specifications

General

Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	1866, 2133, 2400, 2666 MHz
Audio chip	Realtek ALC1220
Component for	PC
Motherboard chipset	AMD X570
Audio output channels	7.1 channels
Motherboard form factor	ATX
Number of mounting holes	9
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Cables included	SATA
HDMI version	1.4
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Number of SATA III connectors	6
BIOS type	UEFI AMI
LAN controller	Realtek RTL8111H
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243 mm
Width	304 mm
