Overview of Components
M2_2 installation

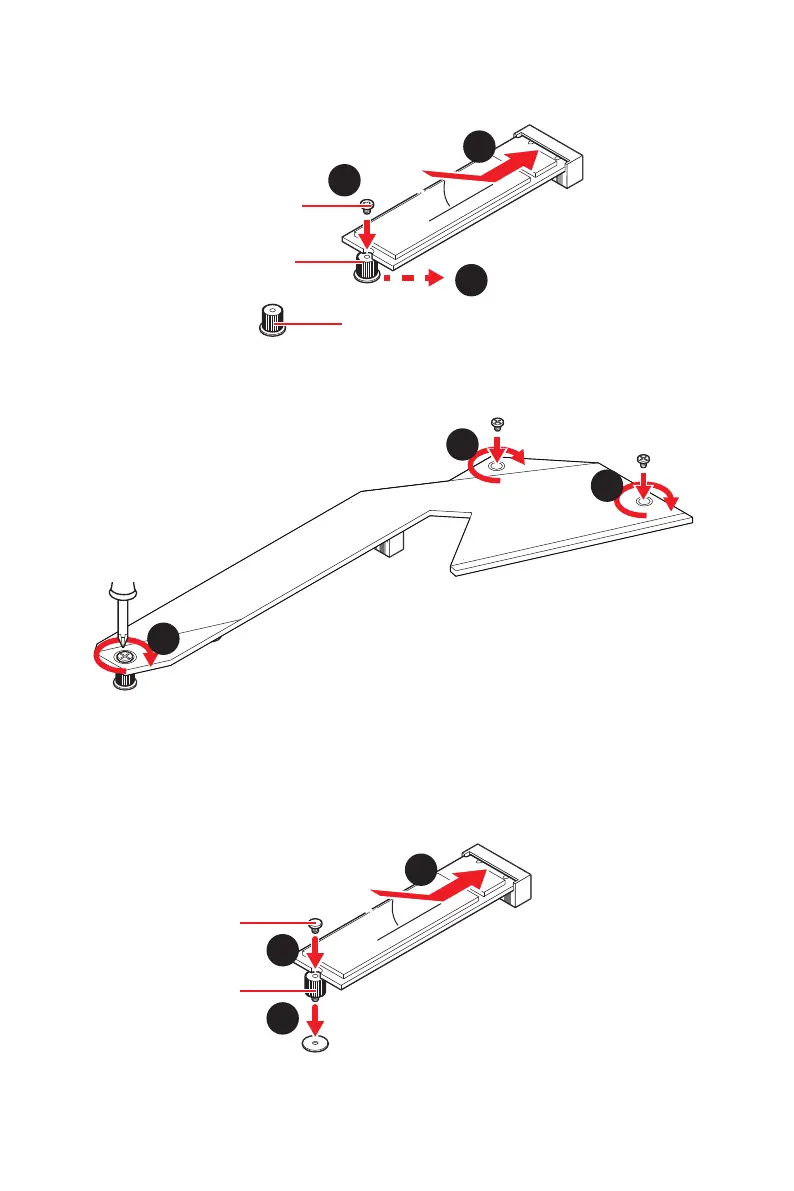

1. Move and fasten the M.2 standoff to the appropriate location for your M.2 SSD.
2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
3. Secure the M.2 SSD in place with the 8.5H M.2 screw provided with motherboard
package.
30º30º
1
3
8.5H M.2 screw
M.2 standoff
2
6
6
6
30º30º
M.2 standoff
heatsink standoff
3
5
4
8.5H M.2 screw
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
