- 8 -
STEP 1

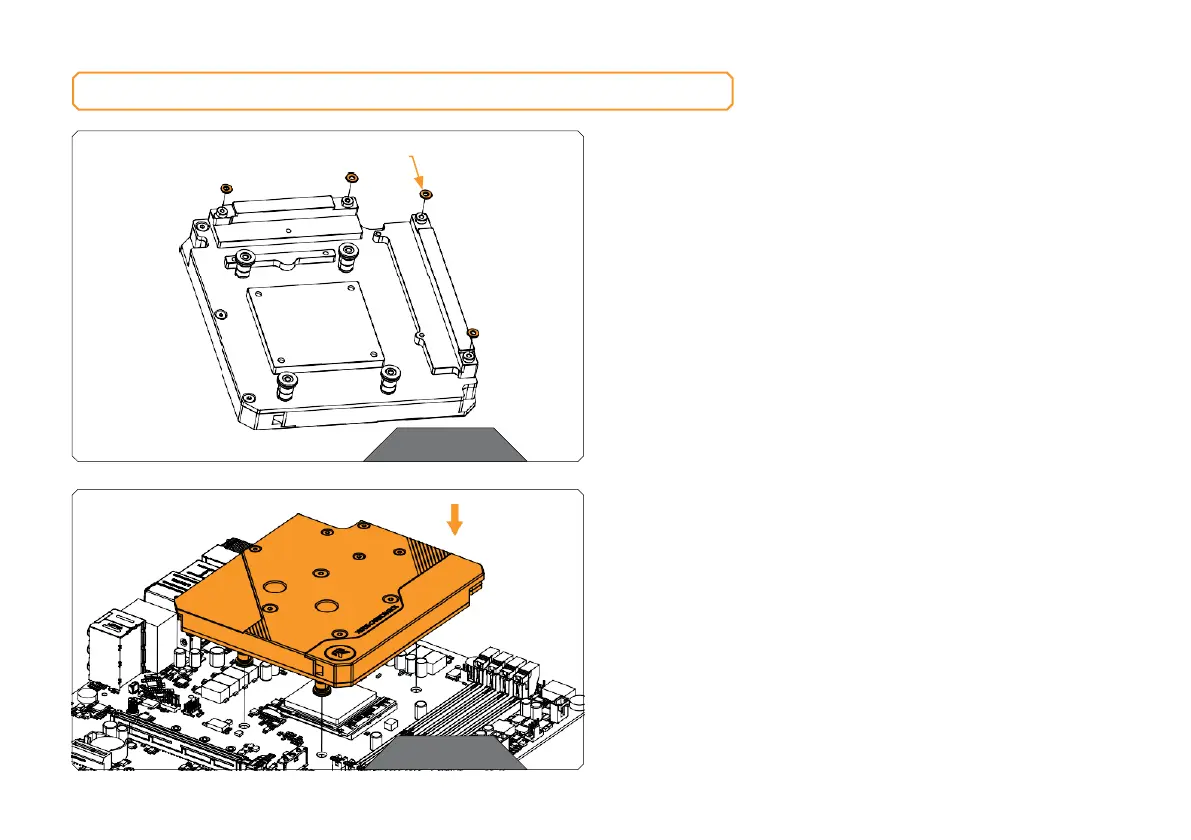

Install four (4) M2.5 self adhesive PVC washers under marked standoffs as
shown on the picture below.
STEP 2
Place the EK-Quantum Momentum X570 Aorus Master Monoblock series
water block to the motherboard or vice versa (as shown on the photo). Make
sure that mounting holes are aligned.
PLACING THE BLOCK ON TO MOTHERBOARD
M2.5 SELF ADHESIVE PVC WASHER
STEP 1
STEP 2
