MSI MPG X570S Carbon EK X User Manual

- 9 -
Do not forget install the Backplate Insulator and AM4 Backplate (as
shown on the photo).

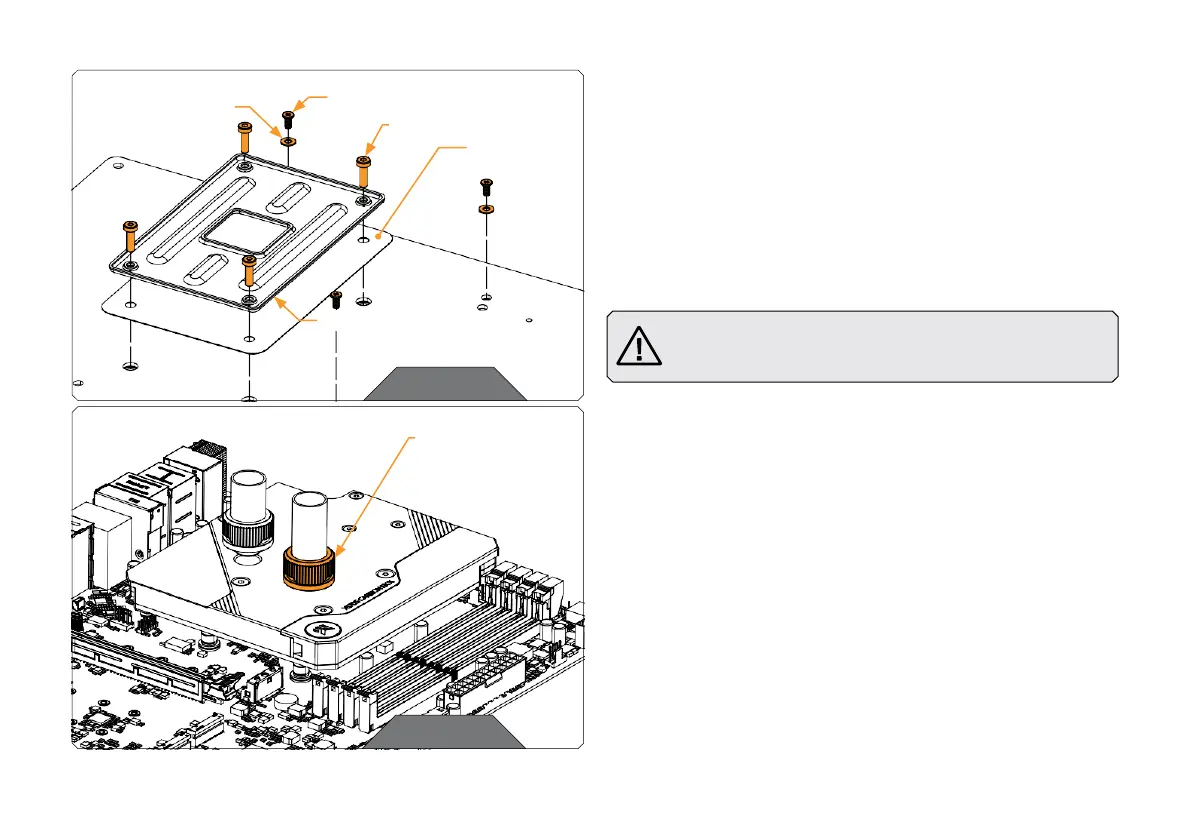

ATTACHING BLOCK ON THE MOTHERBOARD
STEP 1
Prior to fastening the screws please make sure the mounting holes on the
motherboard’s circuit board are aligned with the water block.
Mosfet part: Use three (3) M2.5 x 5 AX1 Screws with PVC washers. Tighten the
screws evenly. Do not use excessive force when tightening the screws.
CPU part: Use four (4) M3 x 10 DIN 7984 with screws. Tighten the screws using
enclosed 2mm Allen Key.
STEP 2
For the EK-Quantum Momentum X570 Aorus Master series water block to
operate properly the G1/4 port nearest to the right edge of the water block
MUST BE USED AS THE INLET PORT.
EK recommends the use of EK-Fittings. When using fittings other than EK series
please use hose clamps or appropriate substitute to secure the tubing to the
barb. The use of biocide containing and corrosion inhibiting coolant is always
recommended for any liquid cooling system.
IMPORTANT:
USE THIS OPENING AS
AN INLET PORT!
STEP 2
PVC WASHER
M2.5x5 AX1 SCREW
M3x10 DIN7984
BACKPLATE
INSULATOR
AM4 Backplate
STEP 1

MSI MPG X570S Carbon EK X Specifications

General

Chipset	AMD X570
CPU Socket	AM4
Form Factor	ATX
Memory Slots	4
Max Memory	128 GB
SATA Ports	6
LAN	2.5G LAN
WiFi	Wi-Fi 6E
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC4080 Codec
RGB Support	Mystic Light RGB
M.2 Slots	4
PCIe Slots	2x PCIe 4.0 x16 (x16/x0 or x8/x8), 1x PCIe 4.0 x16 (x4 mode), 2x PCIe 4.0 x1
Water Cooling	Yes (EK water block included)
