Overview of Components

131

ATX_PWR1

1 +3.3V 13 +3.3V

2 +3.3V 14 -12V

3 Ground 15 Ground

4 +5V 16 PS-ON#

5 Ground 17 Ground

6 +5V 18 Ground

7 Ground 19 Ground

8 PWR OK 20 Res

9 5VSB 21 +5V

10 +12V 22 +5V

11 +12V 23 +5V

12 +3.3V 24 Ground

4 1

CPU_PWR1

1 Ground 5 +12V

2 Ground 6 +12V

3 Ground 7 +12V

4 Ground 8 +12V

⚠

Important

Make sure that all the power cables are securely connected to a proper ATX power

supply to ensure stable operation of the motherboard.

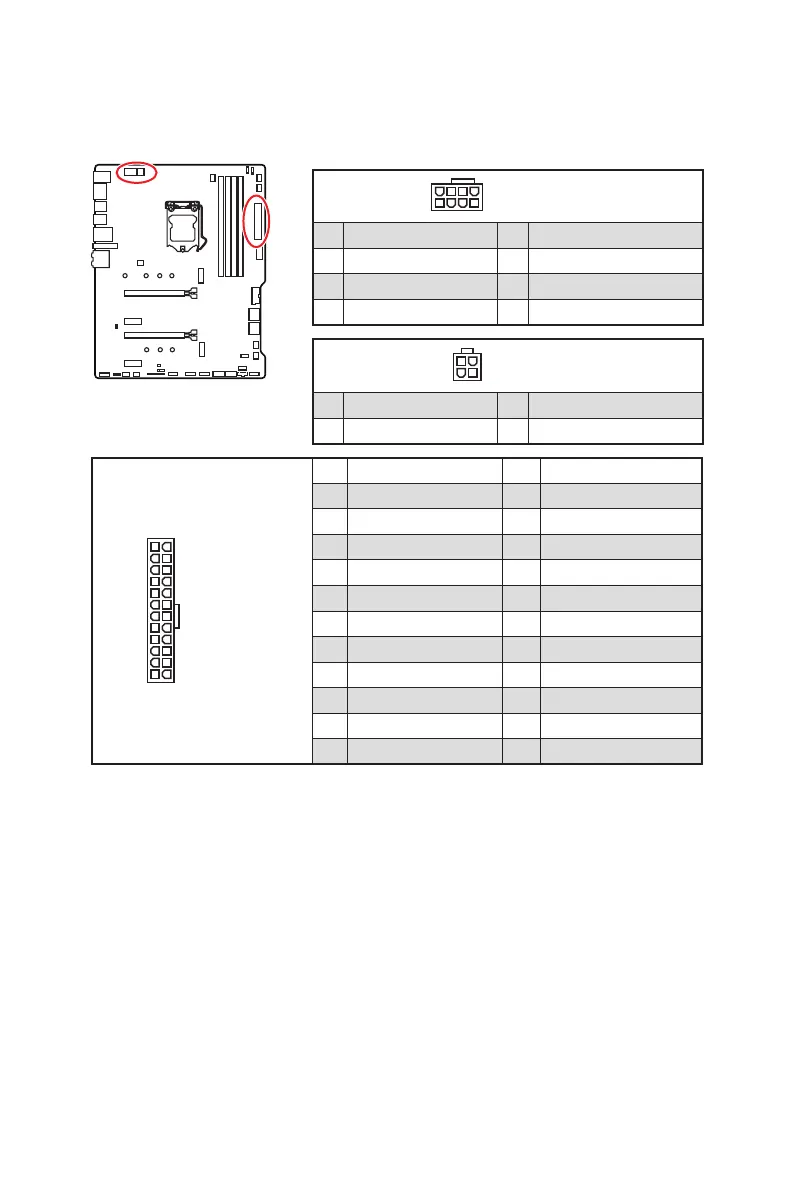

CPU_PWR1, ATX_PWR1: Power Connectors

These connectors allow you to connect an ATX power supply.

2 1

CPU_PWR2

1 Ground 3 +12V

2 Ground 4 +12V

Questions and Answers:

Need help?

Do you have a question about the MSI MPG Z490 GAMING EDGE WIFI and is the answer not in the manual?

MSI MPG Z490 GAMING EDGE WIFI Specifications

General

Chipset	Intel Z490
CPU Socket	LGA 1200
Form Factor	ATX
Memory Slots	4
Max Memory	128 GB
Memory Type	DDR4
M.2 Slots	2
Storage Interface	6 x SATA 6Gb/s
Wireless	Intel Wi-Fi 6 AX201
Bluetooth	Bluetooth 5.1
Audio	Realtek ALC1200 Codec
LAN	Realtek RTL8125B 2.5G LAN
RGB Headers	2 x 4-pin RGB, 2 x 3-pin ARGB
Memory Speed	4800MHz (OC)
USB Ports	1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0
PCIe Slots	2 x PCIe 3.0 x16 slots (x16/x4 mode), 3 x PCIe 3.0 x1 slots
