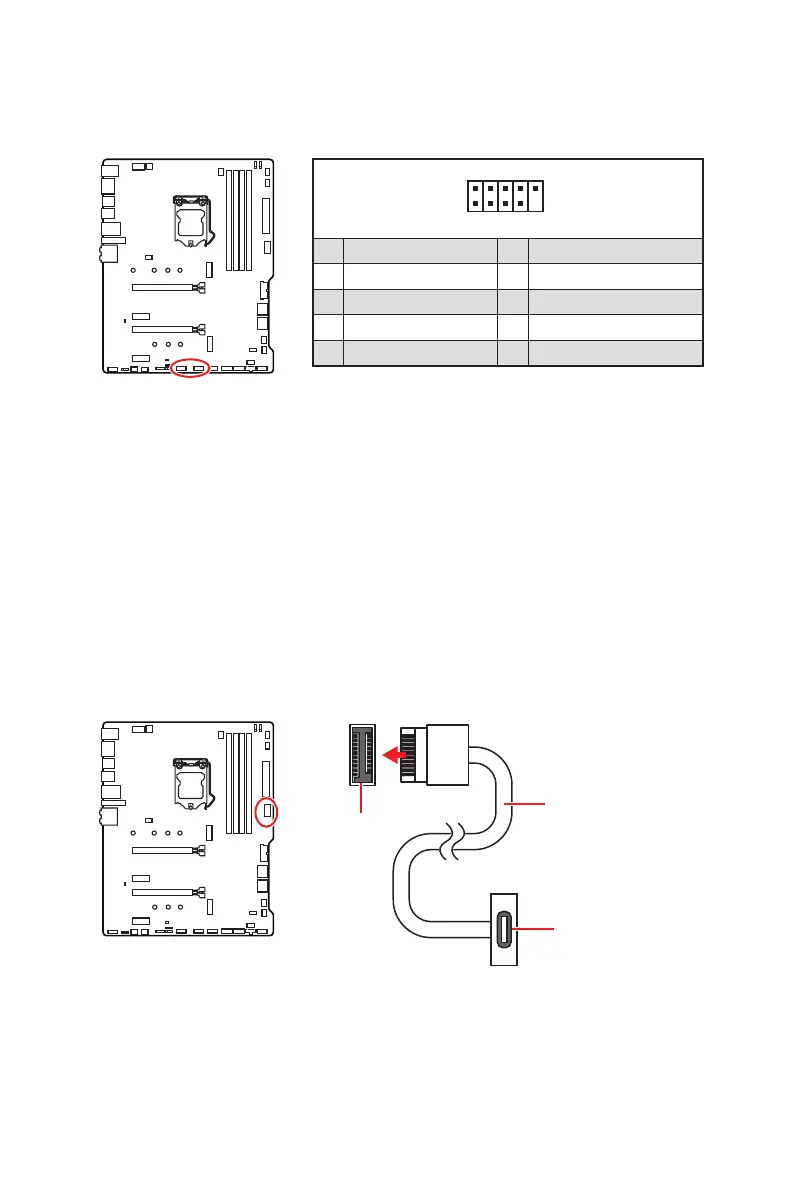

JUSB1~2: USB 2.0 Connectors

These connectors allow you to connect USB 2.0 ports on the front panel.

2 10

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC

⚠

Important

∙

Note that the VCC and Ground pins must be connected correctly to avoid possible

damage.

∙

In order to recharge your iPad,iPhone and iPod through USB ports, please install

MSI

DRAGON CENTER utility.

JUSB4: USB 3.2 Gen 1 Type-C Connector

This connector allows you to connect USB 3.2 Gen 1 Type-C connector on the front

panel. The connector possesses a foolproof design. When you connect the cable, be

sure to connect it with the corresponding orientation.

JUSB4

USB Type-C Cable

USB Type-C port on

the front panel
