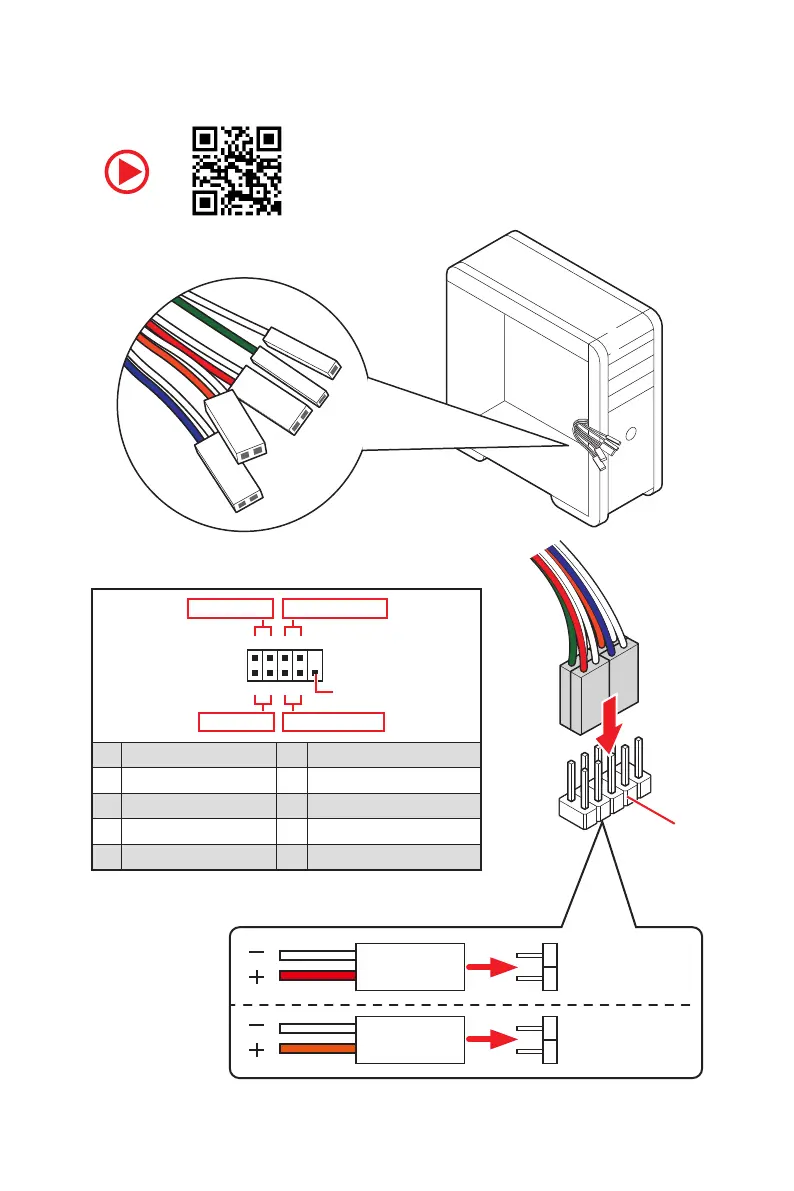

Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED

MSI MPG Z490 GAMING EDGE WIFI Specifications

General

Chipset	Intel Z490
CPU Socket	LGA 1200
Form Factor	ATX
Memory Slots	4
Max Memory	128 GB
Memory Type	DDR4
M.2 Slots	2
Storage Interface	6 x SATA 6Gb/s
Wireless	Intel Wi-Fi 6 AX201
Bluetooth	Bluetooth 5.1
Audio	Realtek ALC1200 Codec
LAN	Realtek RTL8125B 2.5G LAN
RGB Headers	2 x 4-pin RGB, 2 x 3-pin ARGB
Memory Speed	4800MHz (OC)
USB Ports	1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0
PCIe Slots	2 x PCIe 3.0 x16 slots (x16/x4 mode), 3 x PCIe 3.0 x1 slots
