MSI MPG Z490 GAMING PLUS - CPU_PWR1, ATX_PWR1: Разъемы Питания

18
Компоненты материнской платы
24
131
12

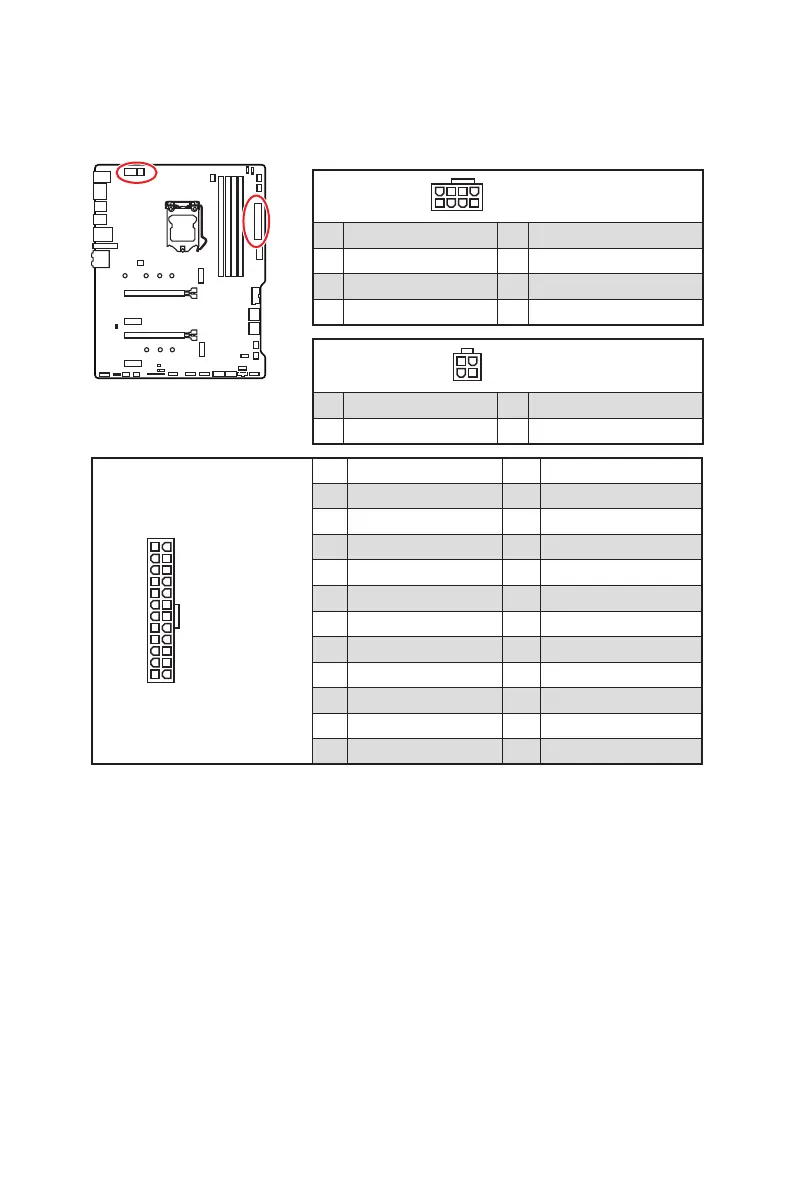

ATX_PWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 
3 Ground 15 Ground
4 +5V 16 
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4 1
8
CPU_PWR1
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
⚠
Внимание!


CPU_PWR1, ATX_PWR1: Разъемы питания

3
2 1
4
CPU_PWR2
1 Ground 3 +12V
2 Ground 4 +12V
