MSI MPG Z490M GAMING EDGE WIFI

10

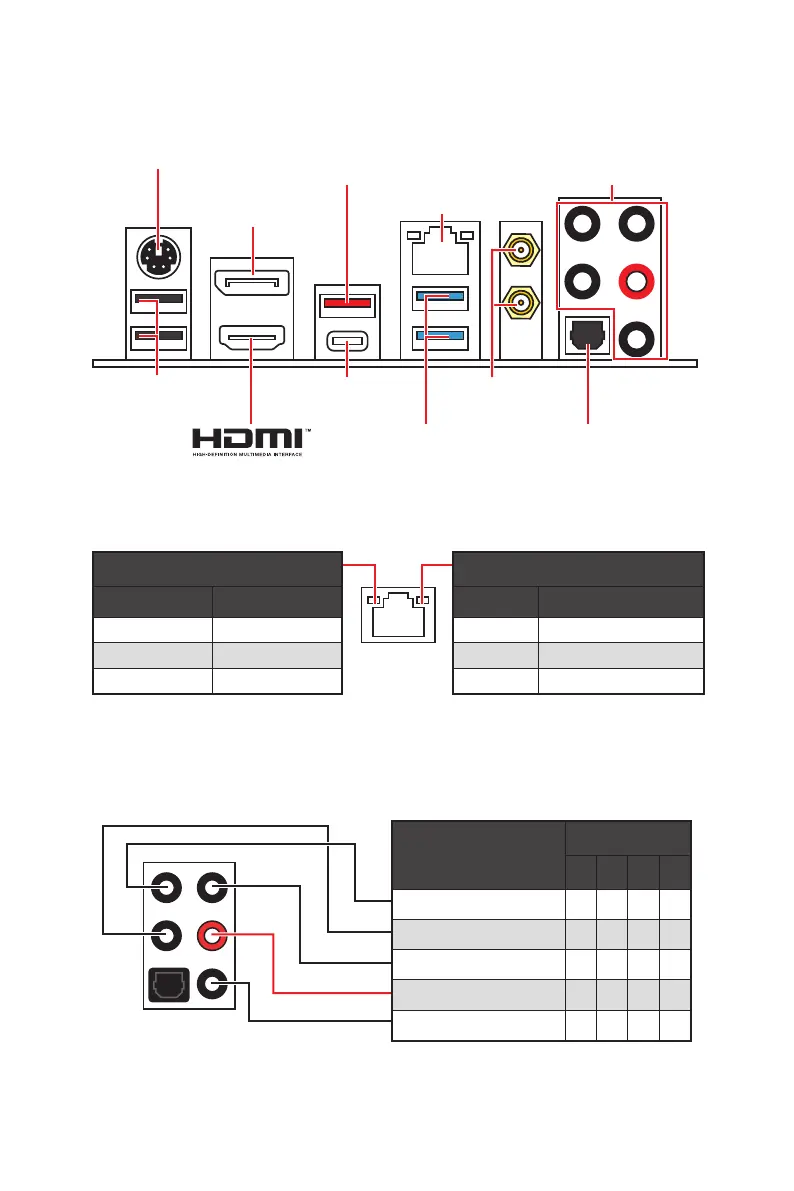

Rear I/O Panel
USB 3.2 Gen 2

Audio Ports Configuration
Rear I/O Panel
PS/2 Combo port
2.5 Gbps LAN
DisplayPort

Audio Ports
Optical


connectors
USB 3.2 Gen 2

Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status 2.5 Gbps LAN
Off 10 Mbps
Green 100/1000 Mbps
Orange 2.5 Gbps
LAN Port LED Status Table
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out  
Rear Speaker Out   
 
    
Mic In
(: connected, Blank: empty)
USB 3.2 Gen 1

