Overview of Components

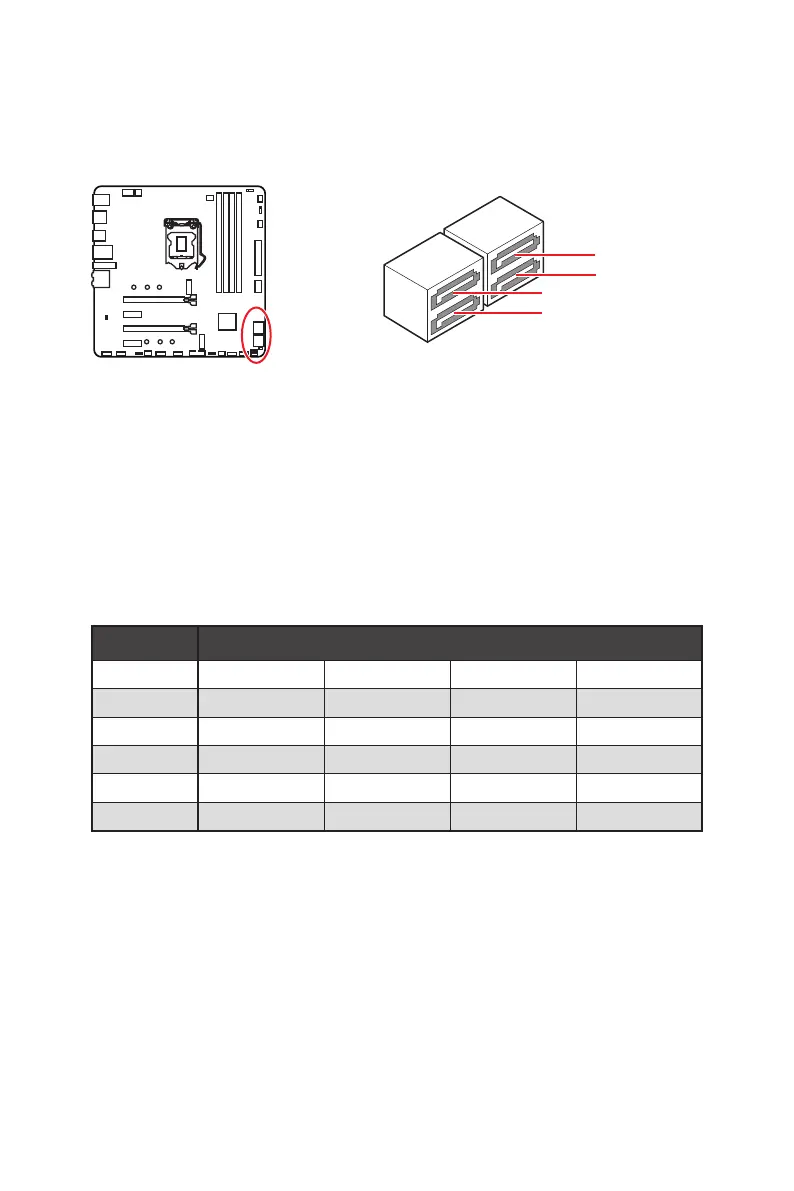

SATA1~4: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA3
SATA1
SATA4
SATA2
⚠
Important
∙
transmission otherwise.
∙
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
∙
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 and SATA combination table
Slot Combination
M2_1 SATA SATA PCIe PCIe
M2_2 SATA PCIe SATA PCIe
SATA1
SATA2
SATA3
SATA4
