MSI MPG Z490M GAMING EDGE WIFI

IV
Quick Start
HDD LED
RESET SW
JFP1
HDD LED

HDD LED +

POWER LED +
POWER LED
1
2 10
9
+
+
+  
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3  4 
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
http://youtu.be/DPELIdVNZUI
⚽

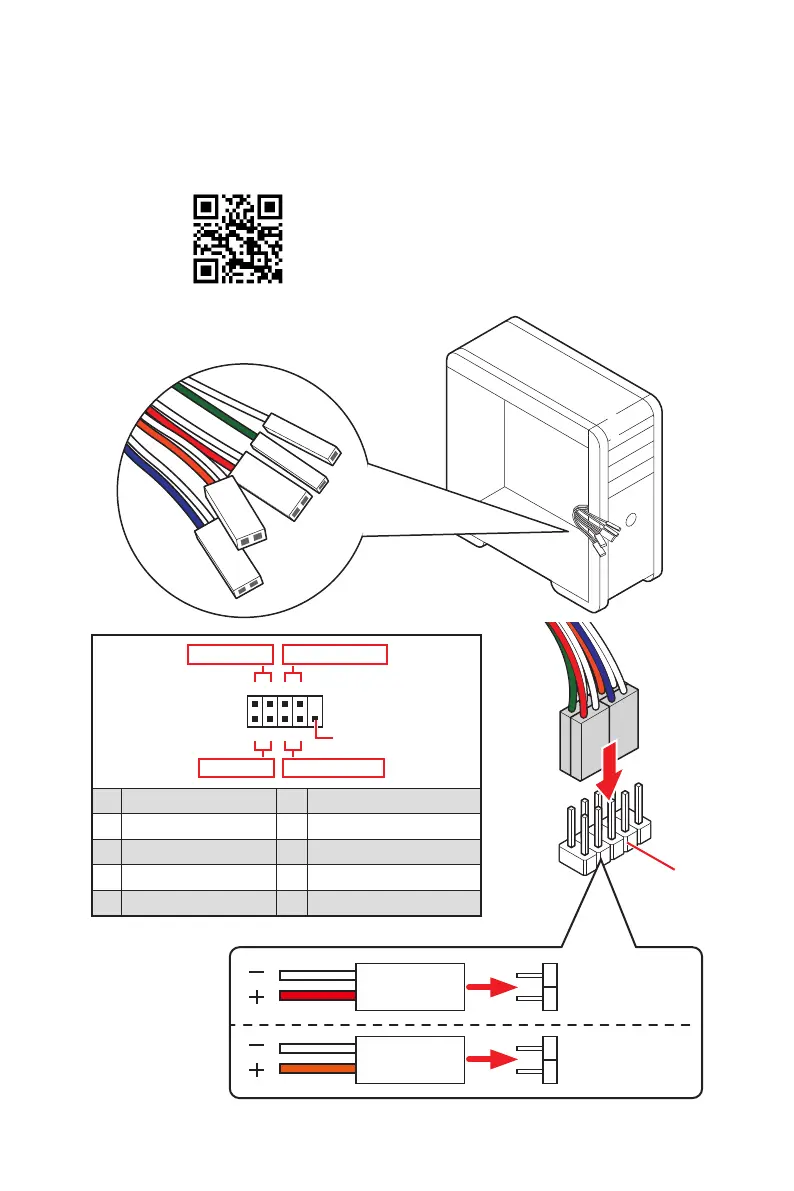

Connecting the Front Panel Header/ Anschließen der
Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ Подключение разъемов передней панели
