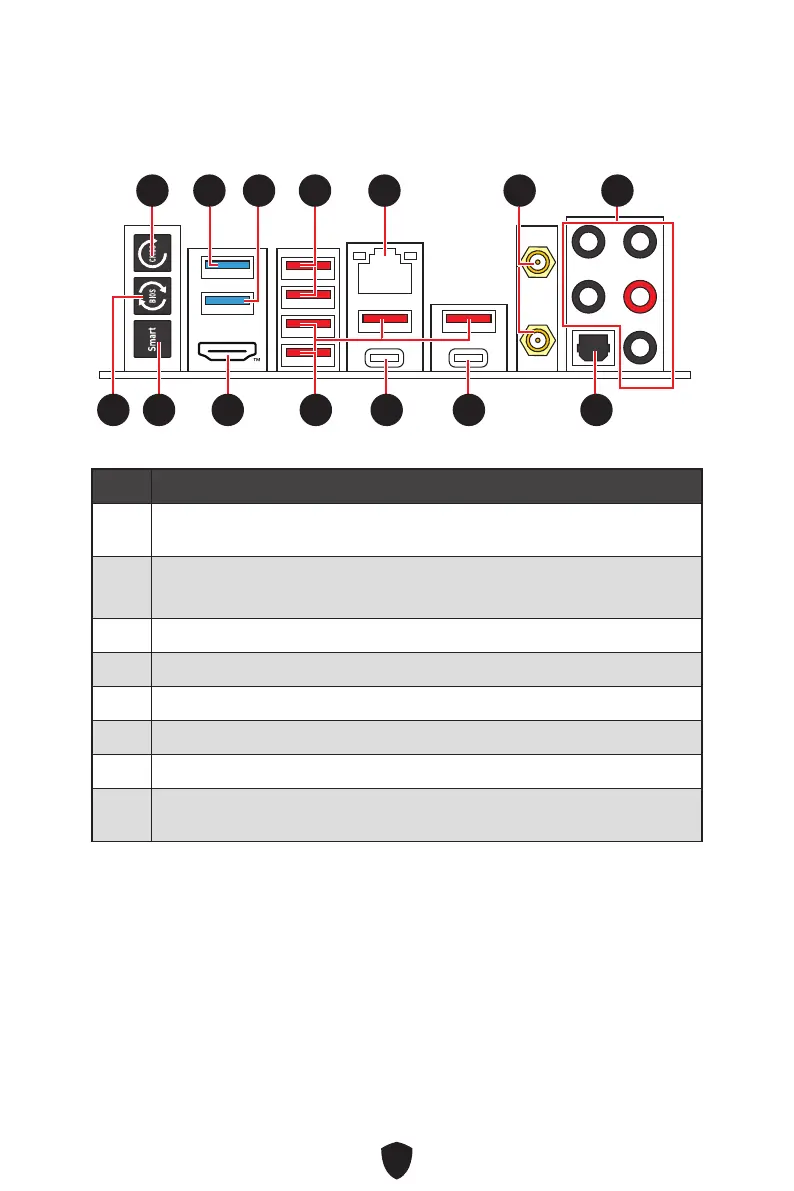

Back Panel Connectors
Item Description
1
Clear CMOS button - Power off your computer. Press and hold the Clear
CMOS button for about 5-10 seconds to reset BIOS to default values.
2
USB 3.2 Gen 1 5Gbps Type-A port (From Z790 chipset)
Flash BIOS port
3 USB 3.2 Gen 1 5Gbps Type-A port (From Z790 chipset)
4 USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset)
5 2.5 Gbps LAN (RJ45) jack
6 Wi-Fi antenna connectors
7 Audio jacks
8
Flash BIOS button - Please refer to page 64 for details about updating BIOS
with Flash BIOS button.
