M2_1~5: M.2 Slots (Key M)
M2_1
M2_2
M2_4
M2_5
M2_3
Important
Intel® RST only supports PCIe M.2 SSD with UEFI ROM.
If your M.2 SSD equips its own heatsink, please remove the M.2 plate or rubber cube
in the M.2 slot before installing M.2 SSD. Do not re-install the heatsink supplied with
your motherboard.
Installing M.2 module into M2_1 slot

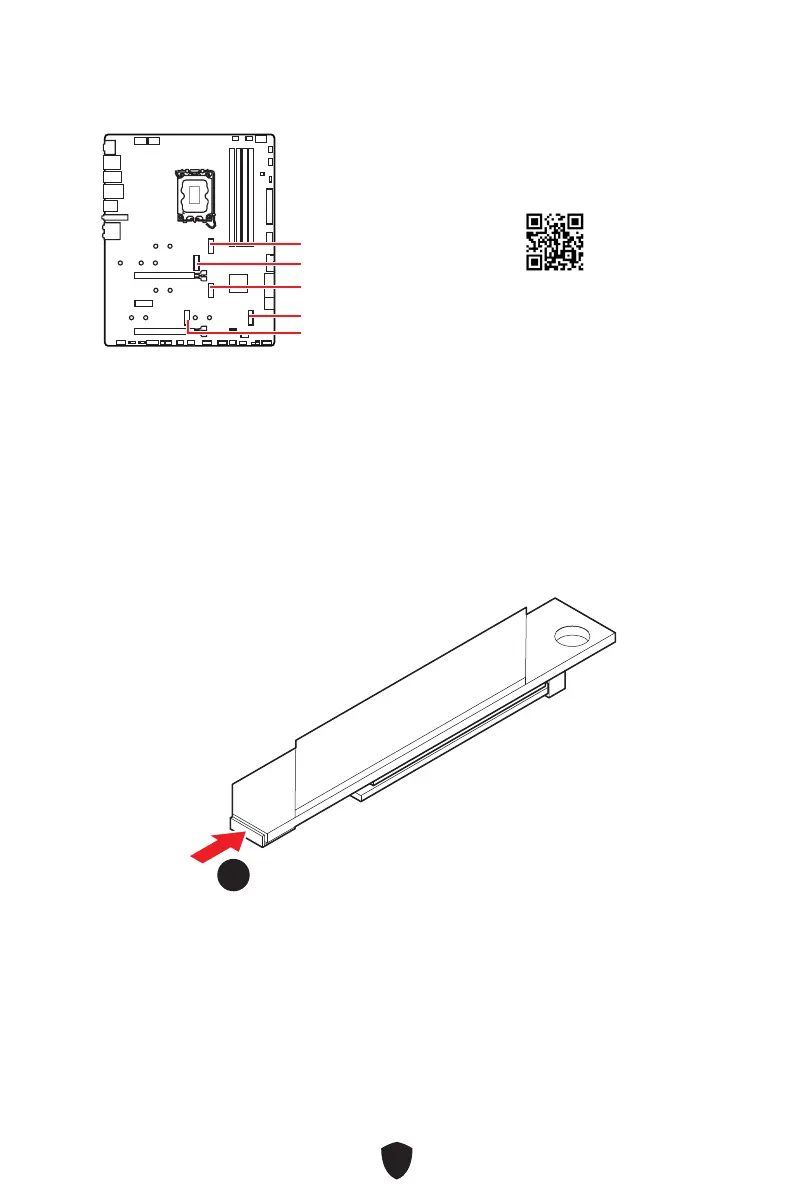

1. Press and hold the end button of Screwless M.2 Shield Frozr heatsink.
11
https://youtu.be/J88vcXeLido
Watch the video to learn how to
Install M.2 SSD with Screwless
M.2 Shield Frozr heatsink.
