MSI MPG Z790 CARBON WIFI

i

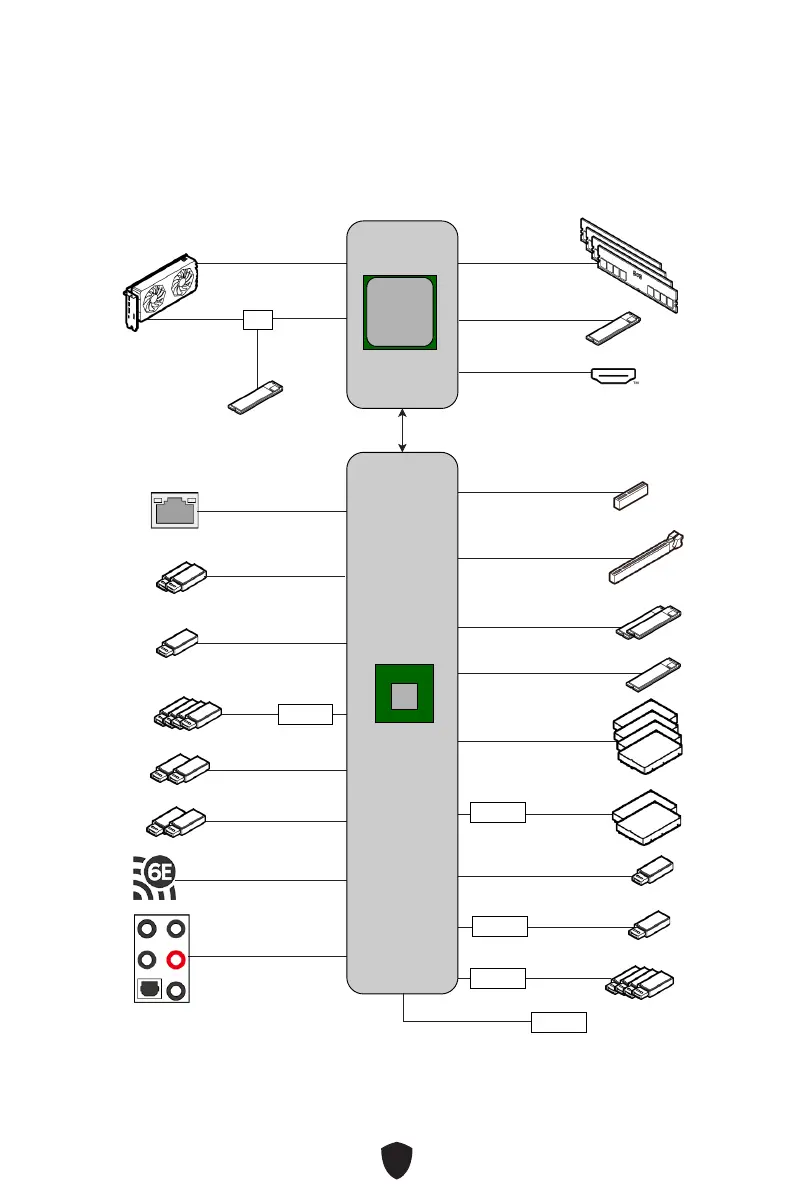

Block Diagram
MPG Z790 CARBON WIFI
PCI_E1
PCIe 5.0x16
DDR5
DIMM A1/A2
DIMM B1/B2
GEN4 x4 M.2_1
(PCIe Only)
GEN4 x4 M.2_3/ M.2_4
(PCIe Only)
USB3.2 Gen2x2 20Gbps
(Type-C)
USB3.2 Gen2 10Gbps
(Type-A)
Intel 2.5Gbps
SATA_5_6_7_8
SATA_A1_A2
ASM1061
WiFi 6E
PCH
HD Audio
ALC4080
CPU
DMI x8
PCIe 5.0 X8
PCIe 5.0 X8
GEN5 x4 M.2_2
(PCIe Only)
MUX
GEN4 x4 M.2_5
(PCIe + SATA)
ASM3242
USB3.2 Gen1 5Gbps
(Type-A)
GL3590
USB3.2 Gen2 10Gbps
(Type-A)
USB3.2 Gen2 10Gbps
(Type-C)
GL850
USB2.0
(Front Type-A)
USB3.2 Gen2x2 20Gbps
(Front Type-C)
USB3.2 Gen1 5Gbps
(Front Type-A)
PCI_E2
PCIe 3.0x 1
PCI_E3
PCIe 4.0x 4
SPI
HDMI™ 2.1
(4K@60Hz)
