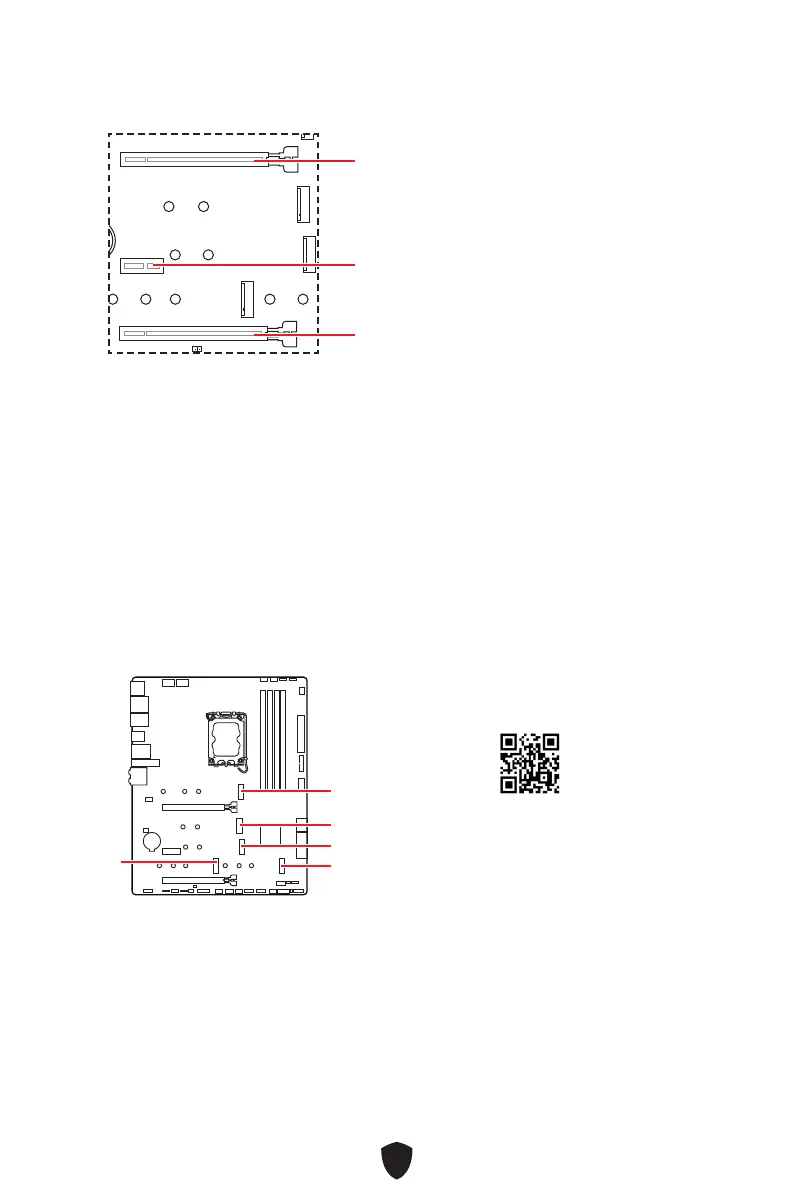

PCI_E1~3: PCIe Expansion Slots
PCI_E1: PCIe 5.0 x16 (From CPU)
PCI_E2: PCIe 3.0 x1 (From Z790 chipset)
PCI_E3: PCIe 4.0 x4 (From Z790 chipset)
Important
If you install a large and heavy graphics card, you need to use a tool such as MSI
Graphics Card Bolster to support its weight to prevent deformation of the slot.
For a single PCIe x16 expansion card installation with optimum performance, using
the PCI_E1 slot is recommended.
When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
M2_1~5: M.2 Slots (Key M)
M2_1
M2_2
M2_4
M2_3
M2_5
Important
Intel® RST only supports PCIe M.2 SSD with UEFI ROM.
If your M.2 SSD equips its own heatsink, please remove the M.2 plates or rubber
cubes in the M.2 slots before installing M.2 SSD. Do not re-install the heatsinks
supplied with your motherboard.
https://youtu.be/J88vcXeLido
