2-16

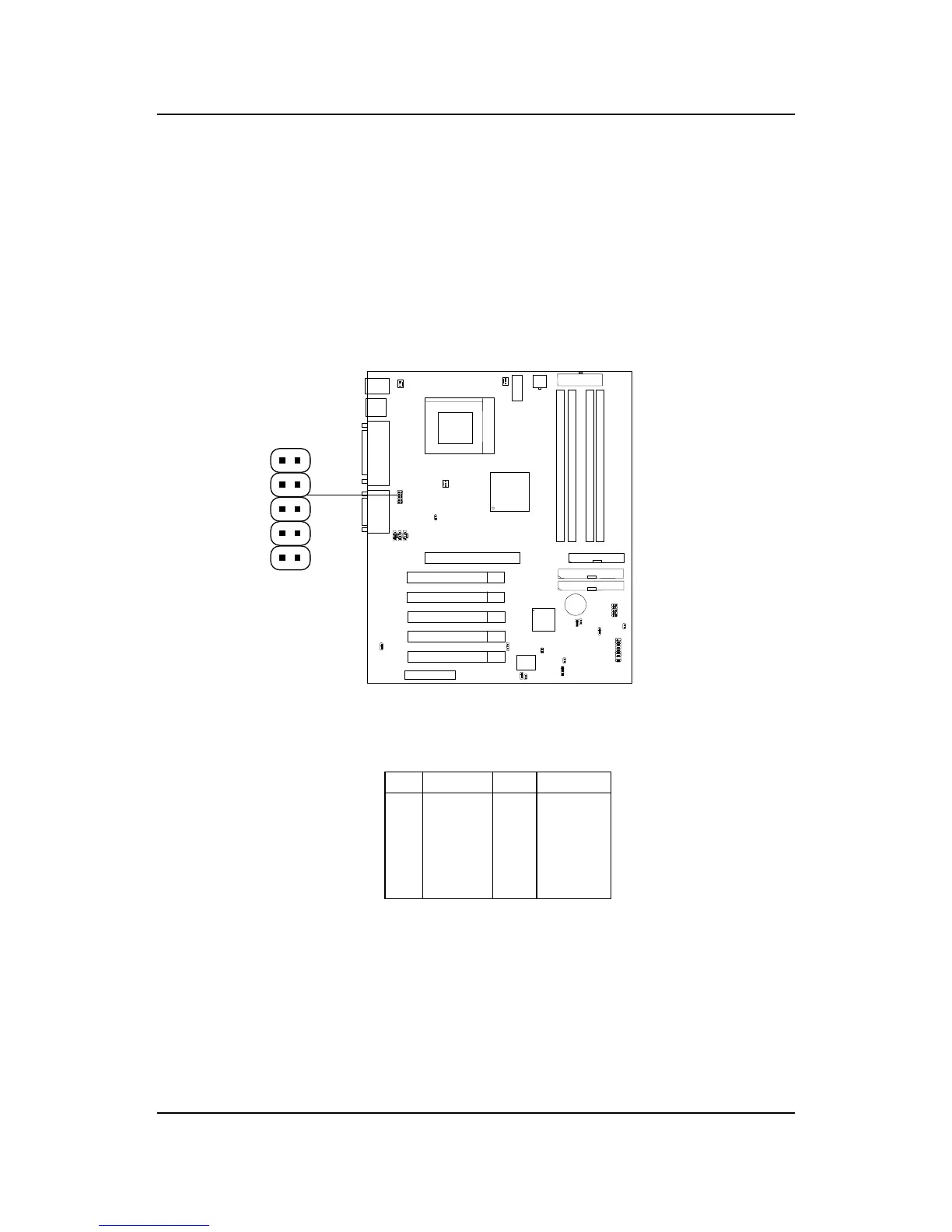

IrDA Infrared Module Connector: J5IrDA Infrared Module Connector: J5
IrDA Infrared Module Connector: J5IrDA Infrared Module Connector: J5
IrDA Infrared Module Connector: J5
The mainboard provides one infrared (IR) connector for IR modules. This
connector is for optional wireless transmitting and receiving infrared module.
You must configure the setting through the BIOS setup to use the IR
function.
J5
1 10
5 9
1 VCC 6 NC
2NC 7NC
3IRRX85VSB
4 GND 9 CIRRX
5IRTX10NC
Pin Signal Pin Signal
